IMALENT closely follows the latest ANSI standards in the United States to test, and the test data is more scientific and accurate

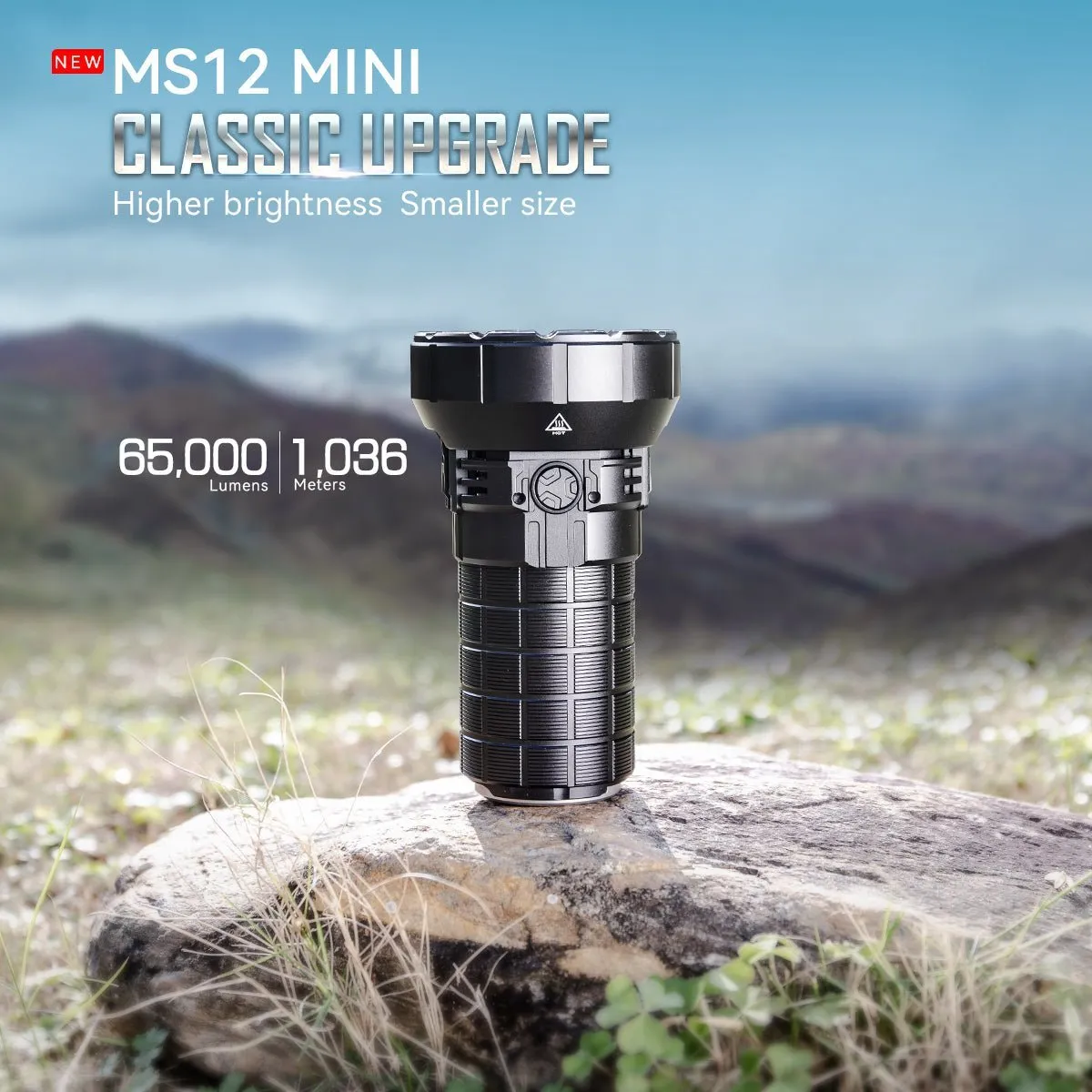

MS12MINI adopts IMALENT's unique bright plating process design, optical reflector and 12 American CREE XHP70 2rd ^LED , the maximum output can reach 70,000 lumens, suitable for output close focus and flood light.With the unique combination of the most compact size and lightest weight and high lumens, the MS12MINI has become a complete high performance multifunctional handheld lighting tool.The versatility and high performance of the MS12MINI can provide a convenient light source for nighttime activities and outdoor sports.

---

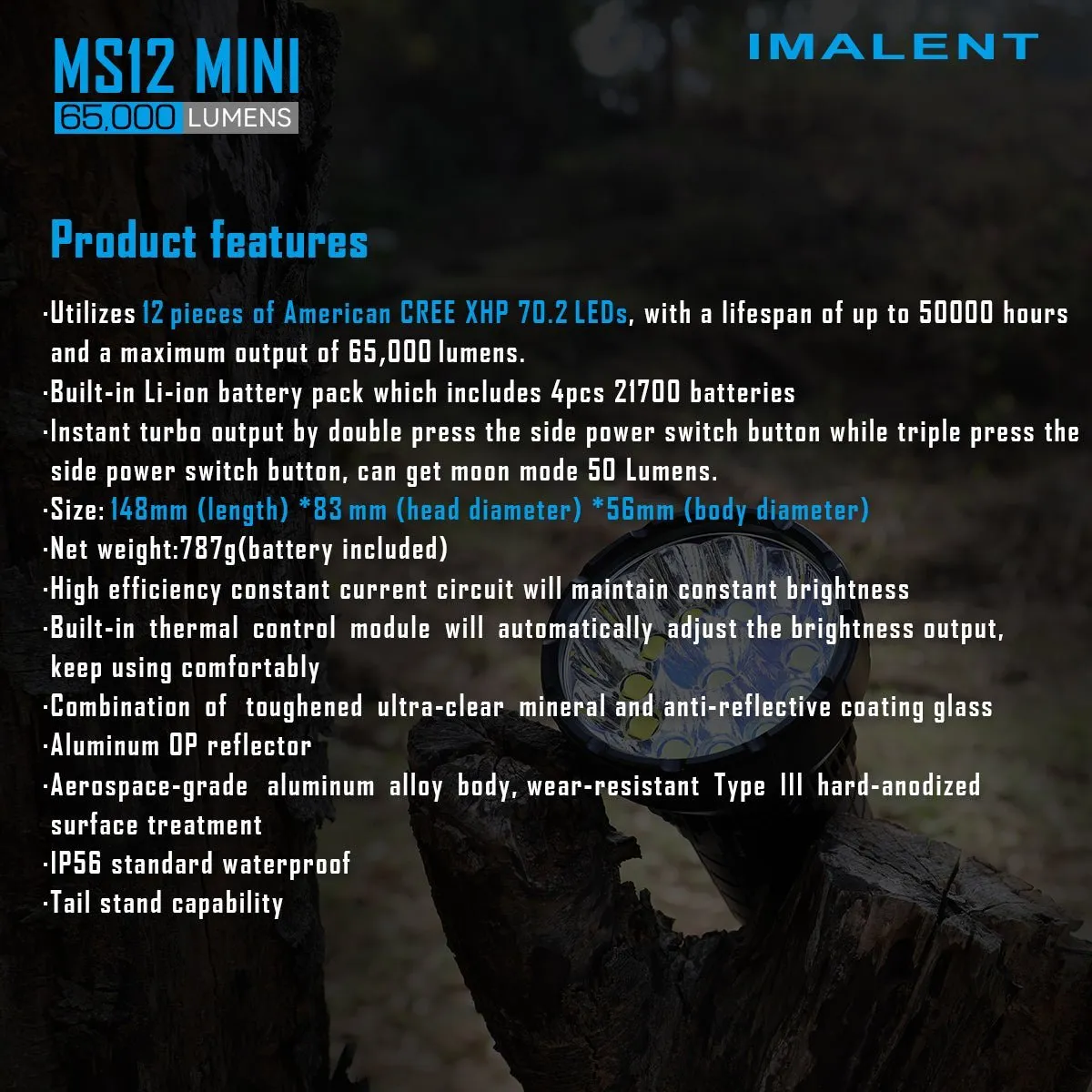

Feature

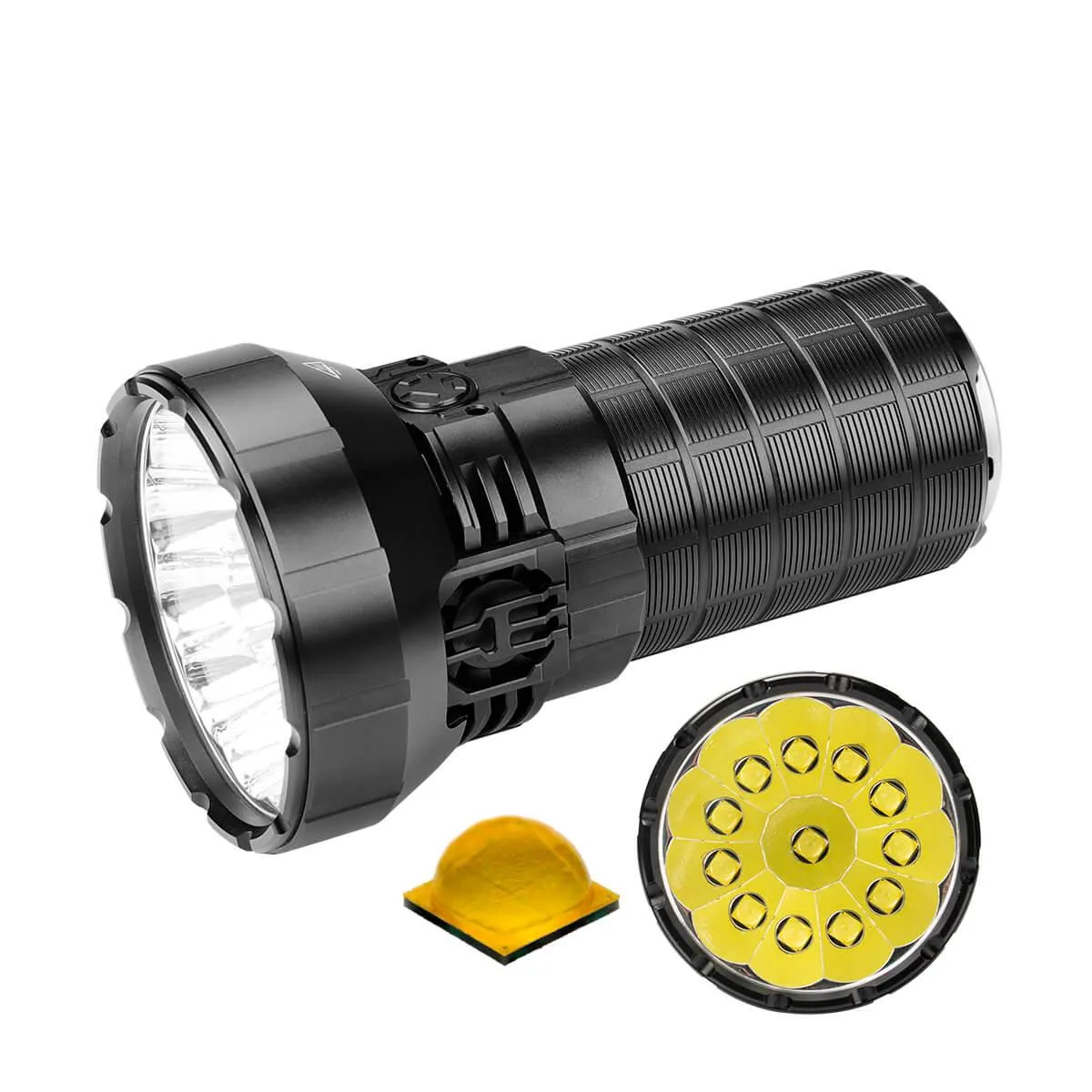

• Using 12 American CREE XHP 70.2 LEDs, the lifespan is up to 50,000 hours, and the maximum output is 7,000 lumens.

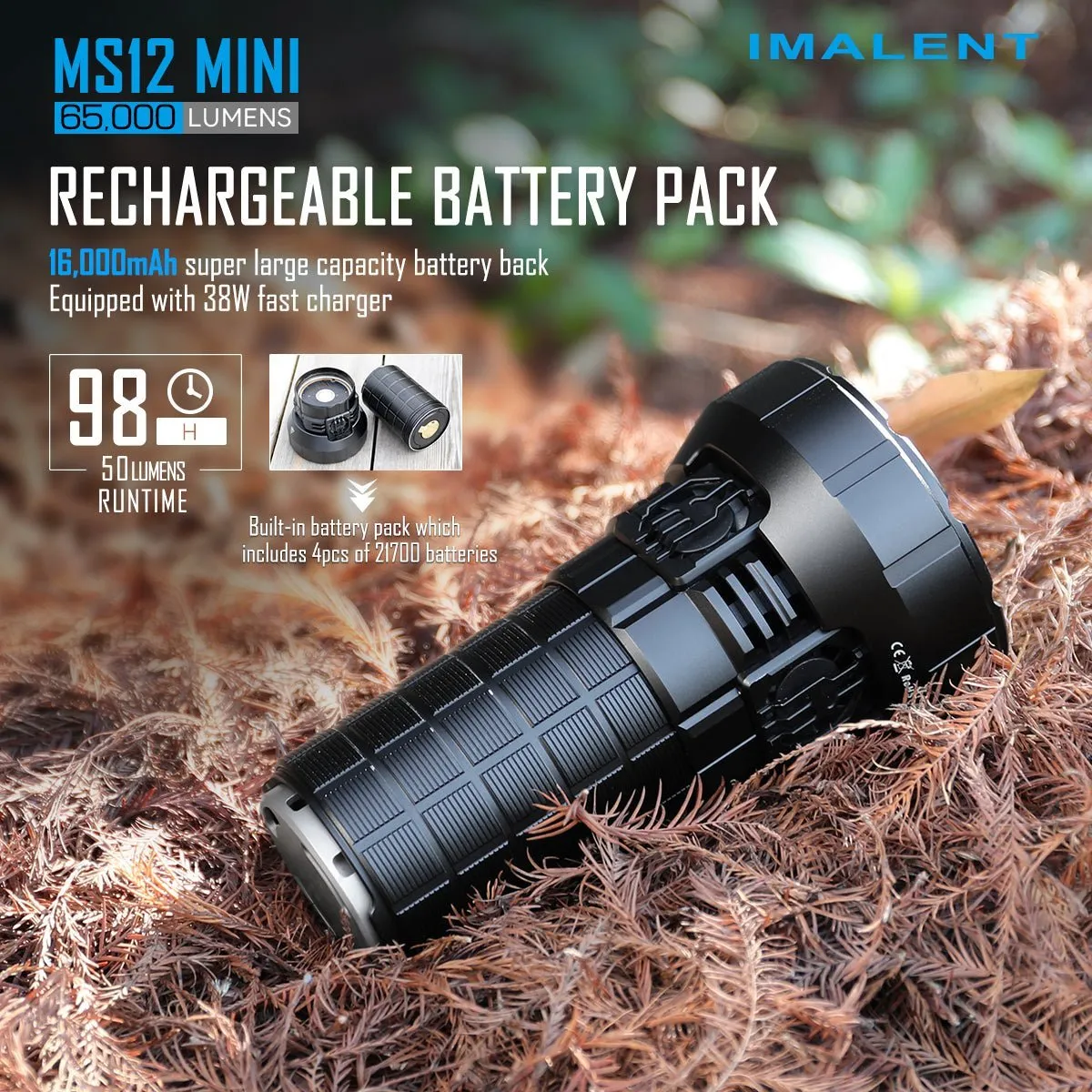

• 4 built-in 21700 high-efficiency rechargeable lithium batteries.

• Product size: Size: 149mm (length) * 83mm (head diameter) * 56mm (body diameter)

• Net weight: 787g (including battery)

• High efficiency constant current circuit will maintain constant brightness

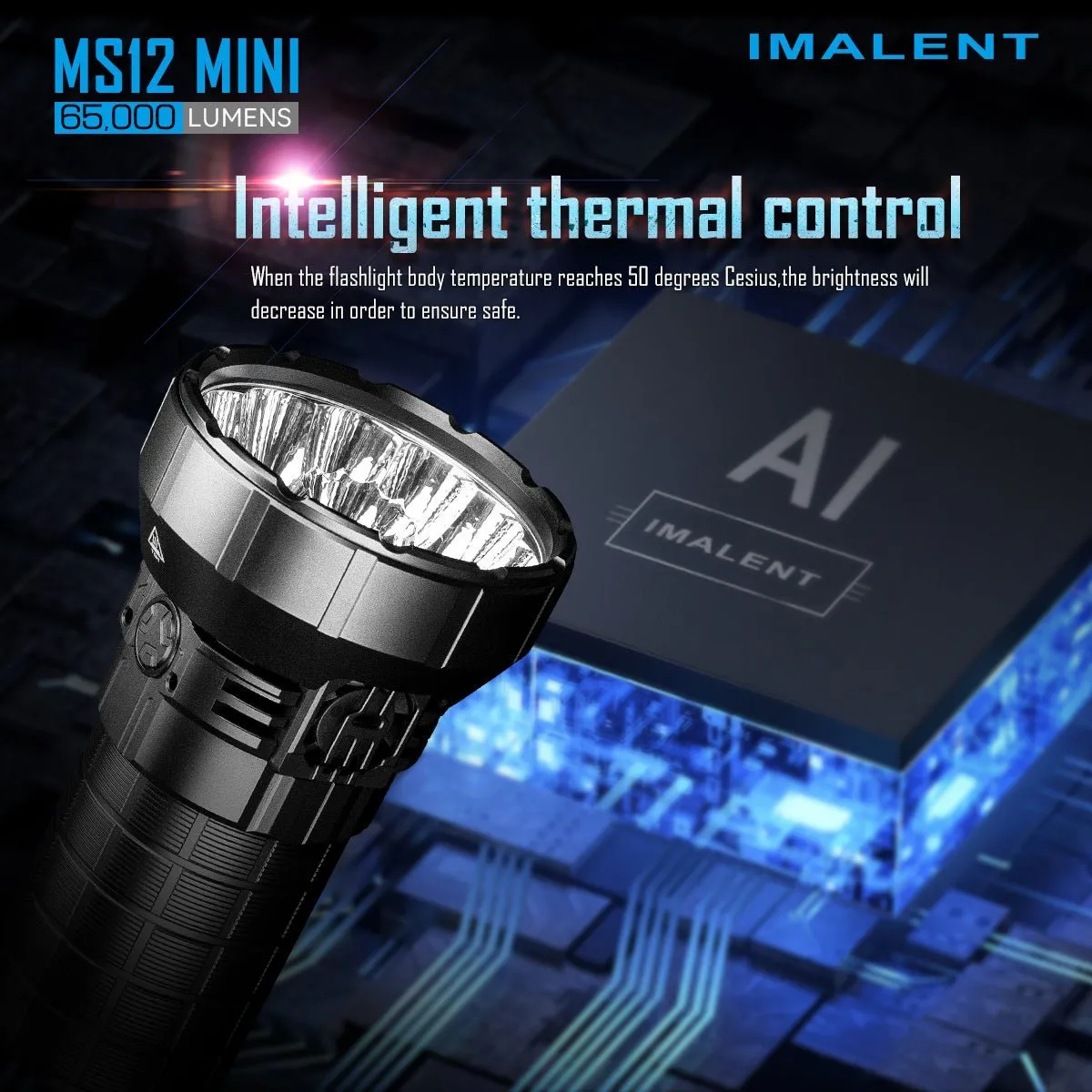

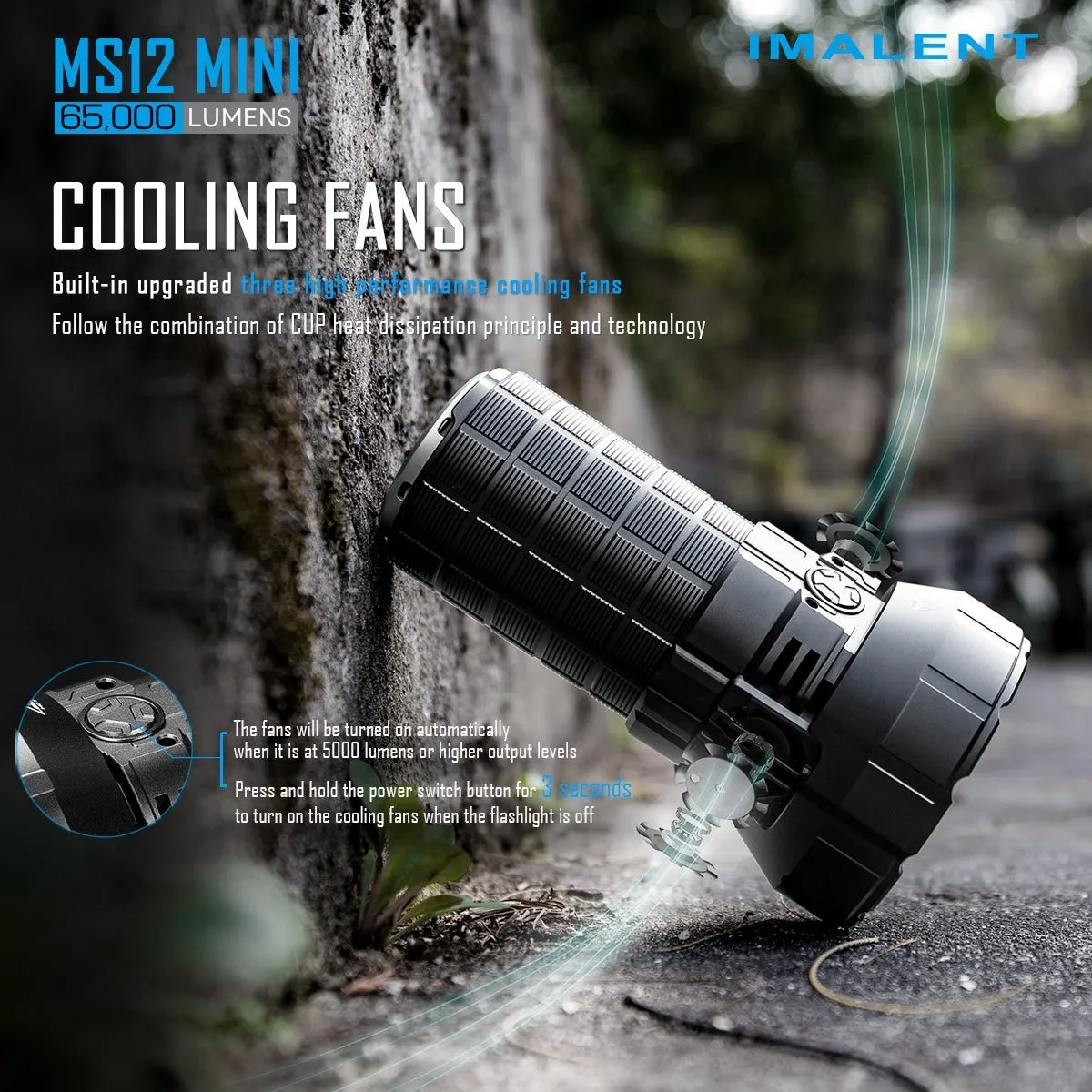

• The built-in thermal control module automatically adjusts the brightness output for continuous use and comfort

• Combination of tempered ultra-white minerals and anti-reflection coated glass

• Aluminum OP Reflector

• Aviation grade aluminum alloy body, wear-resistant type III hard anodized surface treatment

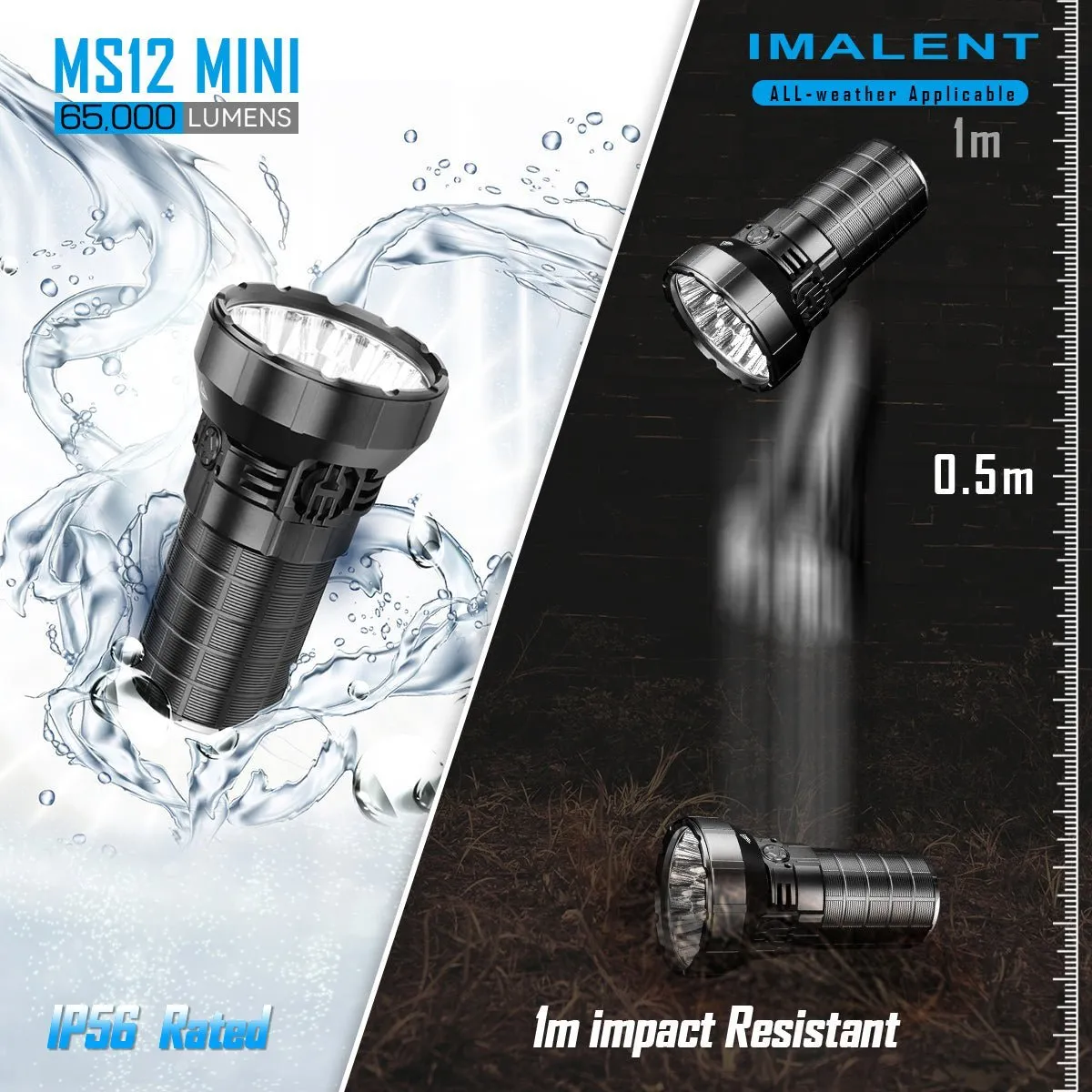

• IPX-8 standard waterproof (2m diving）

• 1.5m impact resistance.
• 尾架能力。

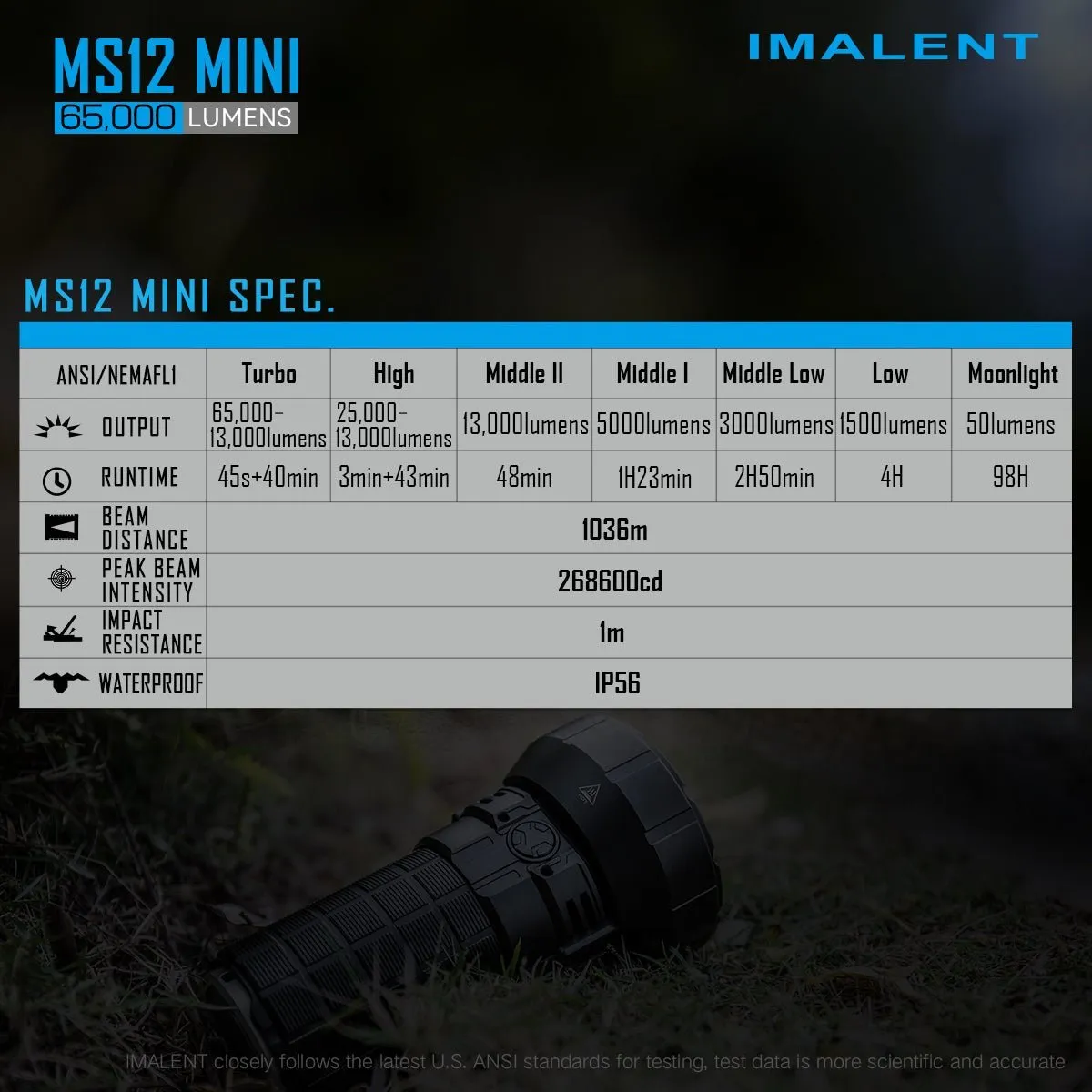

Flashlight Specifications

BRAND	IMALENT
PRODUCT CODE	MS12MINI

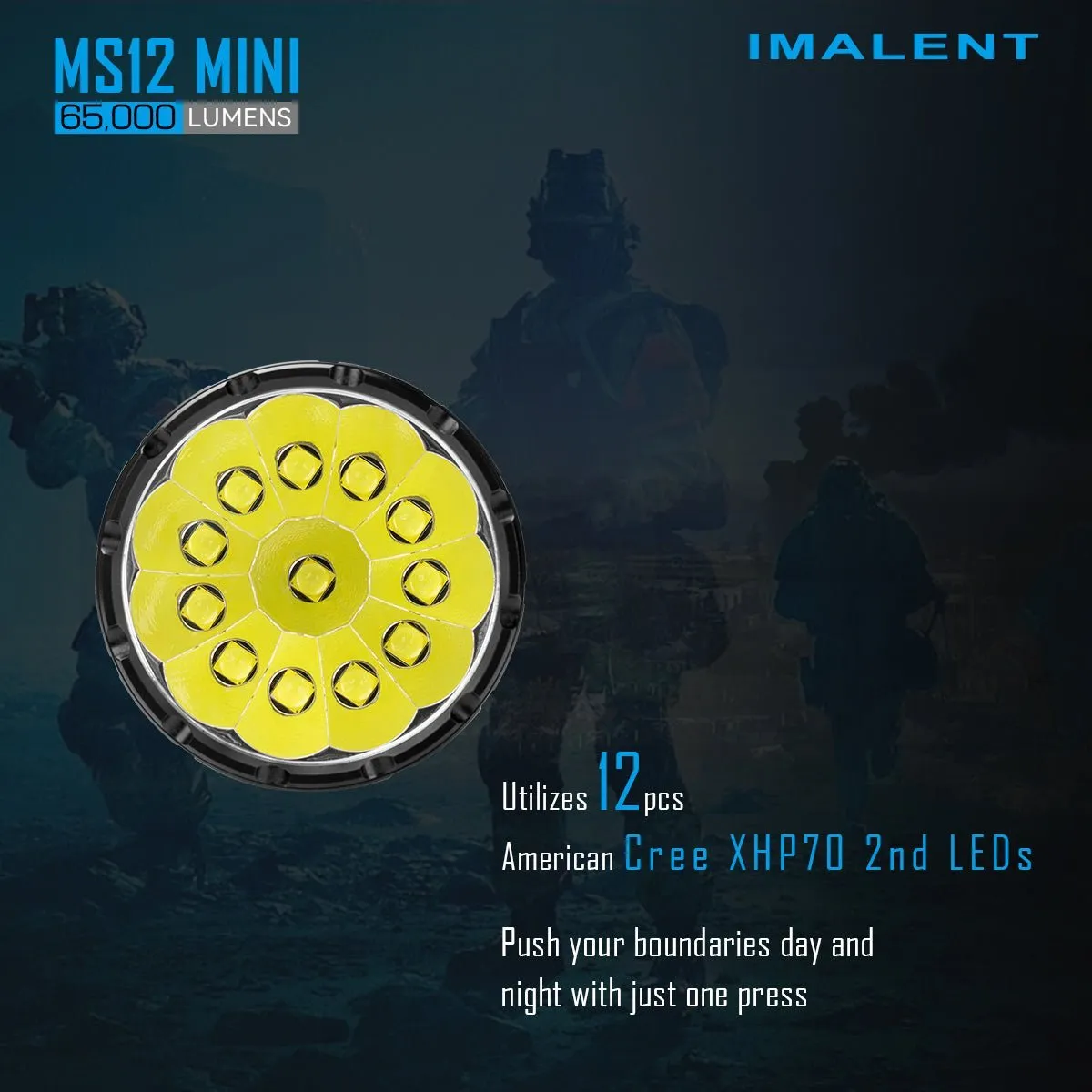

LED TYPE	12 pieces of American CREE XHP70 2nd(3nd) LEDs

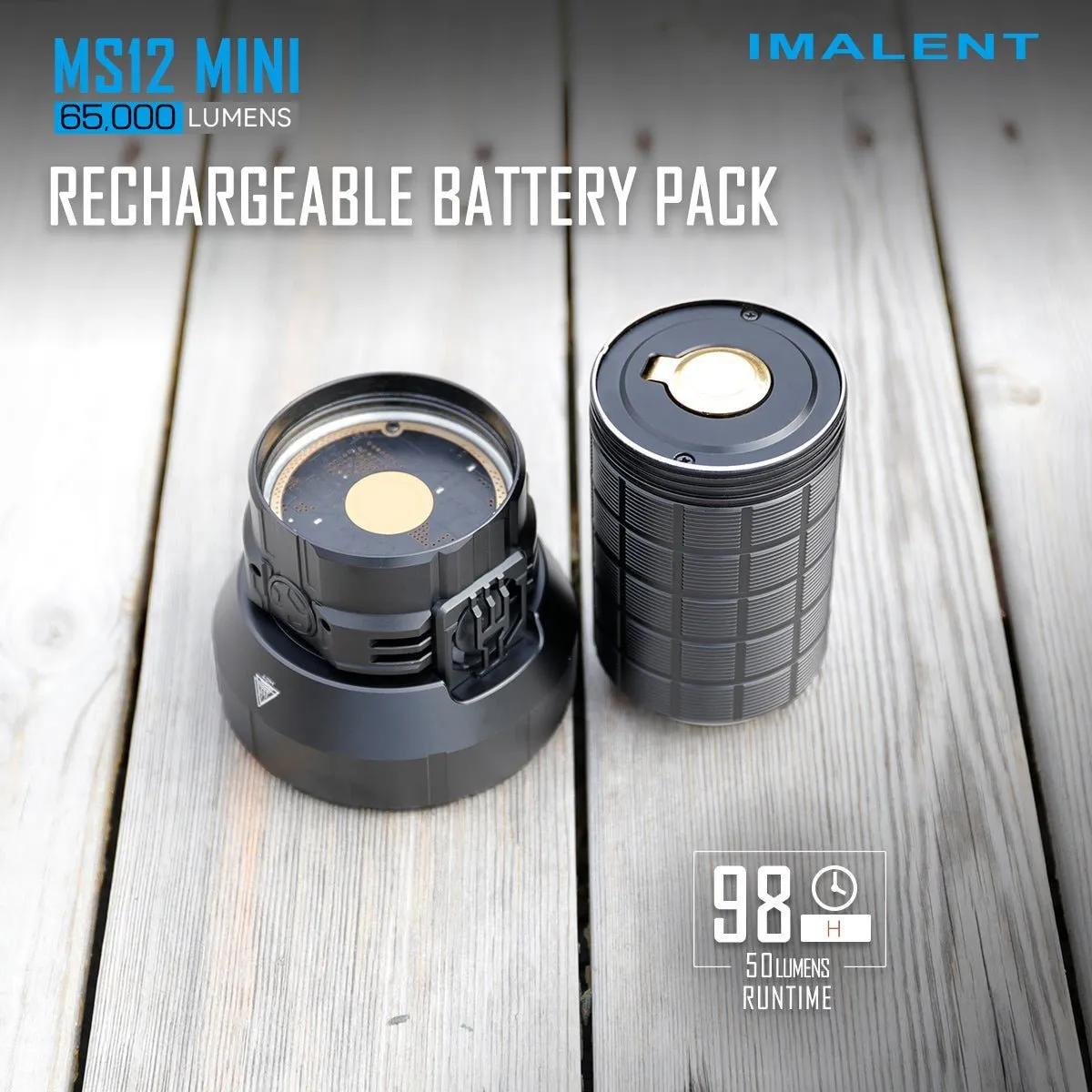

BATTERIES REQUIRED	Built-in high effective rechargeable li-ion battery pack ( includes 4 pieces 21700)
LUMINOUS FLUX	Up To 65,000 Lumens
RUN TIME	Up To 4h
INTENSITY	268600cd (Max.)
DISTANCE	1036m (Max.)

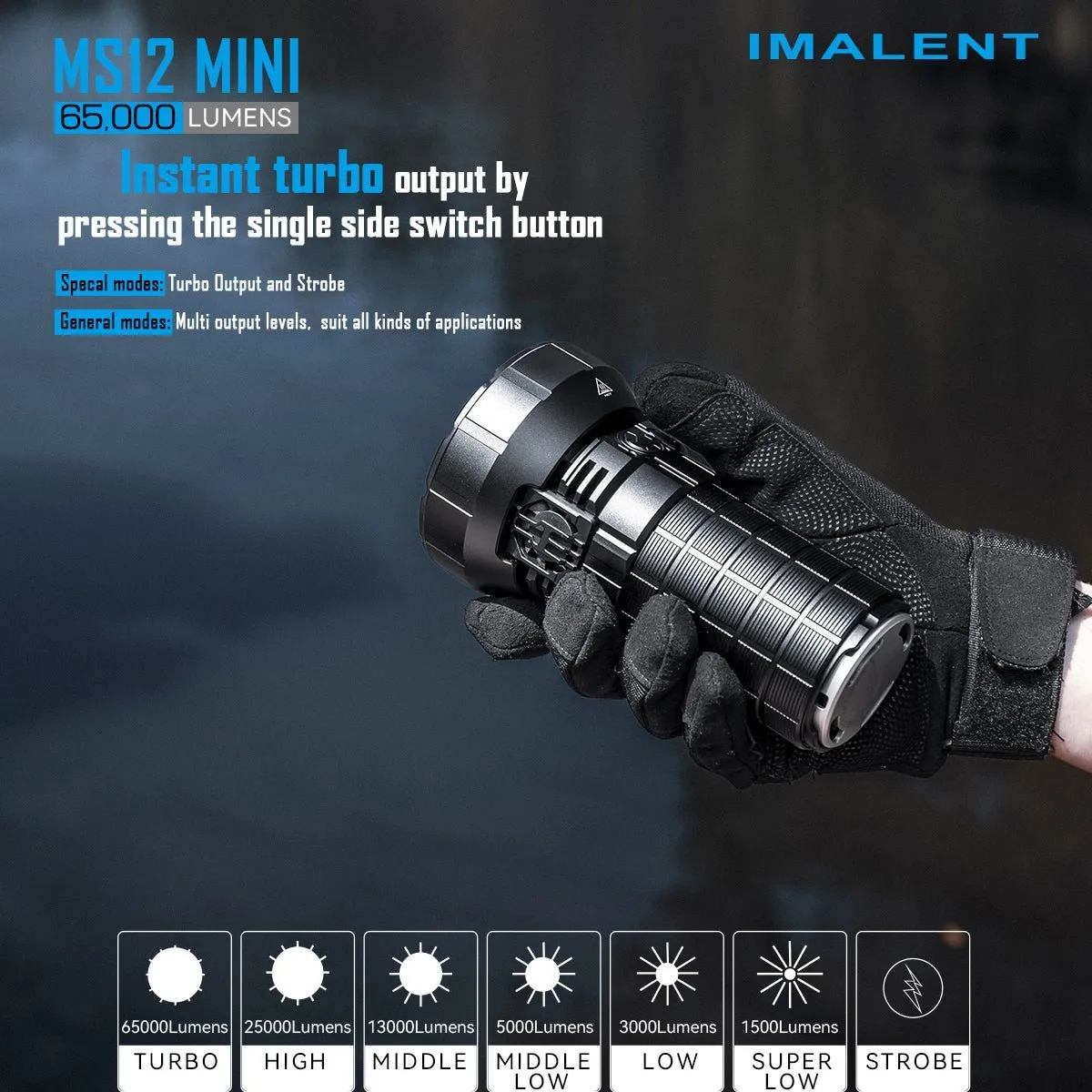

OPERATING MODES	Turbo / High / Middle II / Middle I / Middle Low / Low /
OUTPUT AND RUNTIME	. Turbo output : 65,000~13，000 Lumens；Run-time : 45s 40min High output : 25，000~13,000 Lumens；Run-time : 3min 43min Middle II output : 13，000 Lumens；Run-time : 48min Middle I output : 5000 Lumens；Run-time : 1h23min Middle low output : 3000 Lumens；Run-time : 2h50mini Low output : 1500Lumens；Run-time : 4h
MEASUREMENTS	149mm (length)*83 mm (head diameter) *56mm (body diameter)
WEIGHT	787g (battery included)
IMPACT RESISTANCE	1m
WATERPROOF	IPX68 standard waterproof( 2 meters submersible)

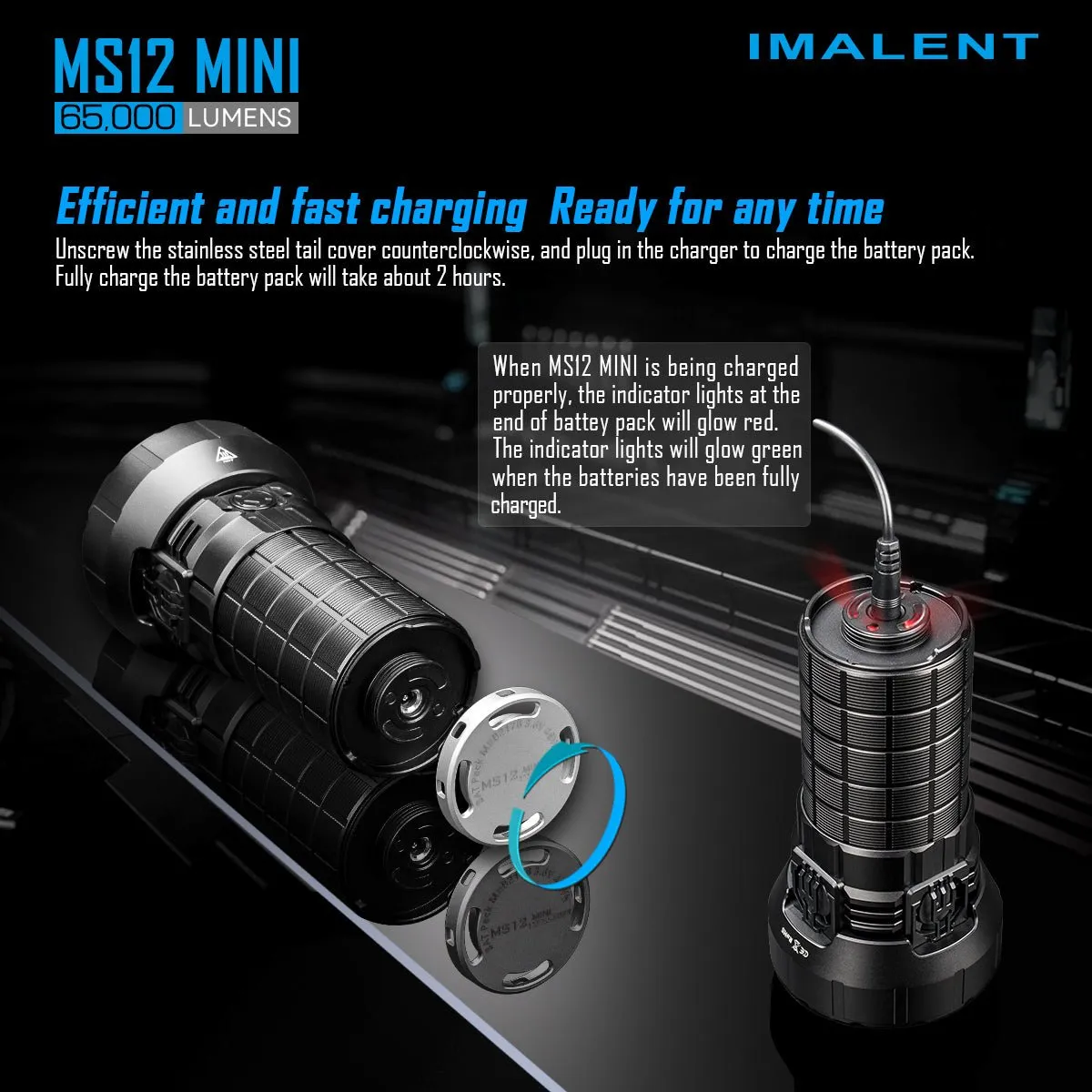

ACCESSORIES	Holster, Charger, Lanyard, 4000mAh 21700 Li-ion battery pack, O-rings

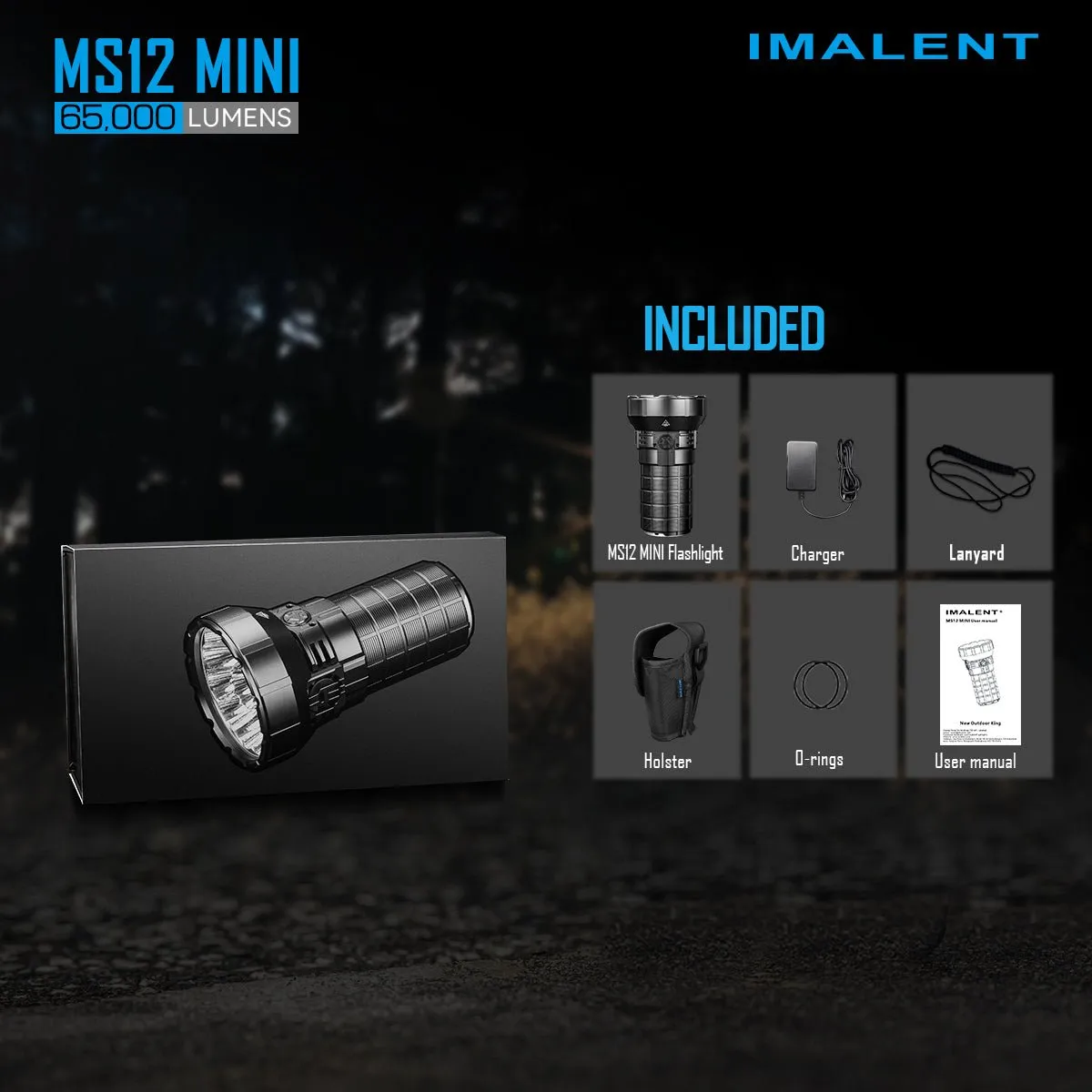

Packaging and Contents

Available in retail packaging including:

• Imalent MS12mini  x 1

• Holster x 1
• Charger x 1
• Lanyard x 1
• 4000mAh 21700 Li-ion battery pack
• O-rings x 2
• User Manual x 1

We care about our valued buyers, and if you have any questions, our customer service staff will be happy to assist you.Online customer service will reply within 15 minutes during working hours.We will endeavour to respond to your email within 24 business hours.
