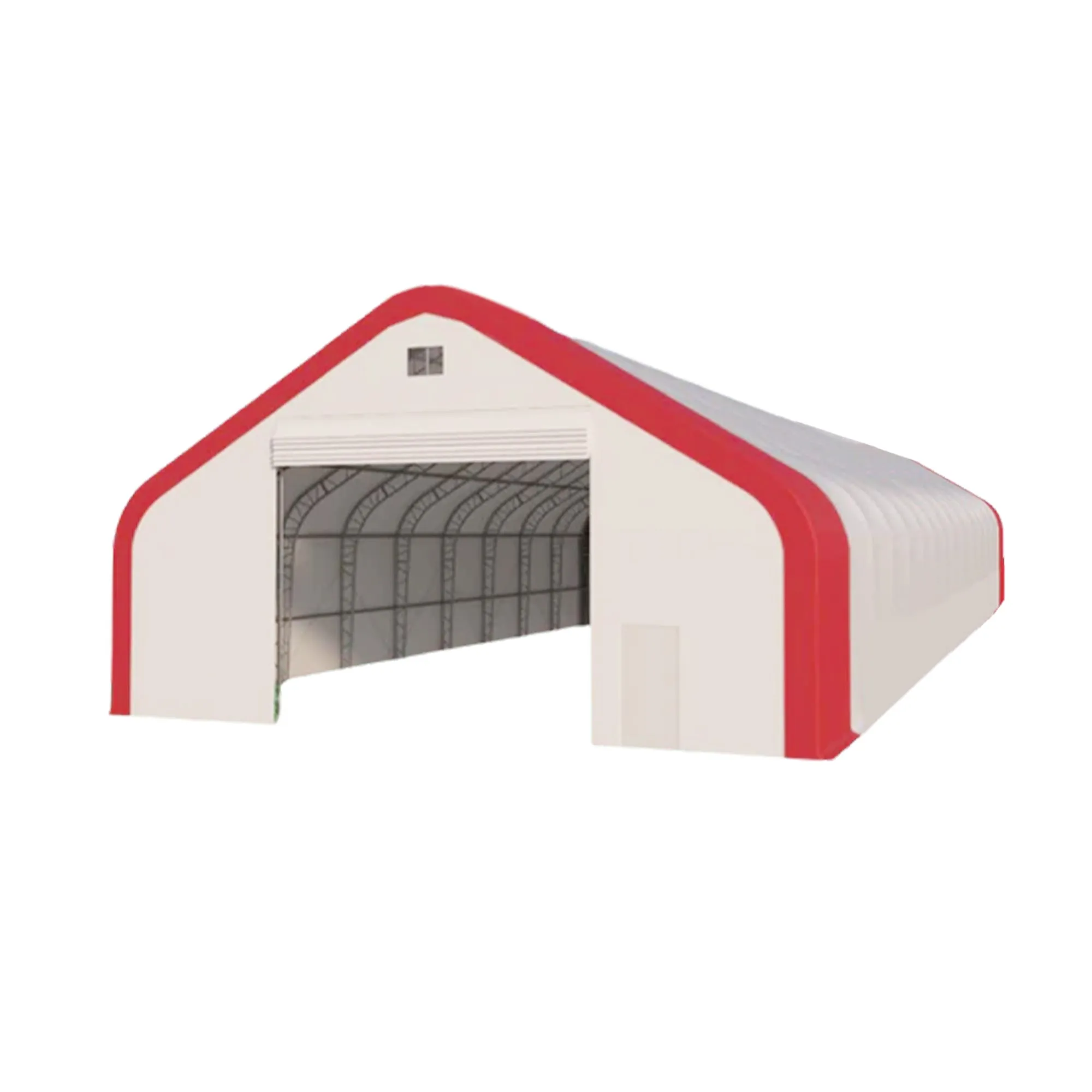

Gold Mountain Storage Shelter W50’xL100’xH23’

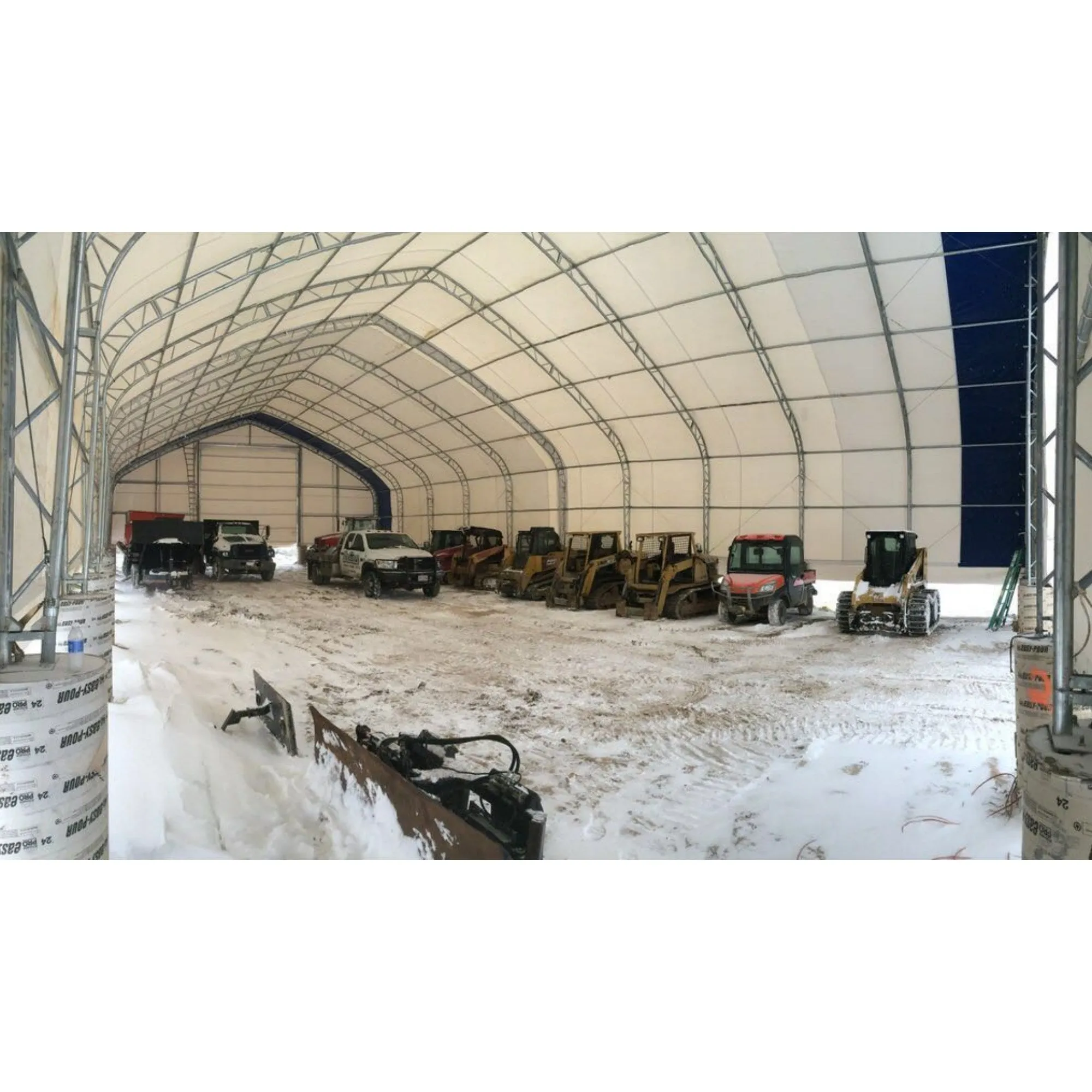

The Gold Mountain Storage Shelter W50’xL100’xH23’ - Double Truss 650g (23oz) PVC is a must-have item for storage and protection. It is ideal for agriculture, farms, automobile storage, entertainment tents, events, temporary shelters, film sets, or even parties. The steel construction is tested to stand under up to 60 miles per hour wind load, scorching sun, heavy snow, and even the toughest weather conditions in North America. If you are looking for something to cover and protect your cars, boats, RV’s, buses, campers, equipment, tools, materials, supplies, or anything, this Gold Mountain Single Truss Storage Shelter is a perfect solution.
The peak shelter helps snow to slide off faster. The PVC fabric is stronger than PE and is therefore more resistant to weather effects. Plus, PVC has a longer lifespan.
Features
-
Provides unlimited storage space with 50’ wide, 100’ long, and 23’ high.
-
Suitable for different purposes, from residential to commercial.
-

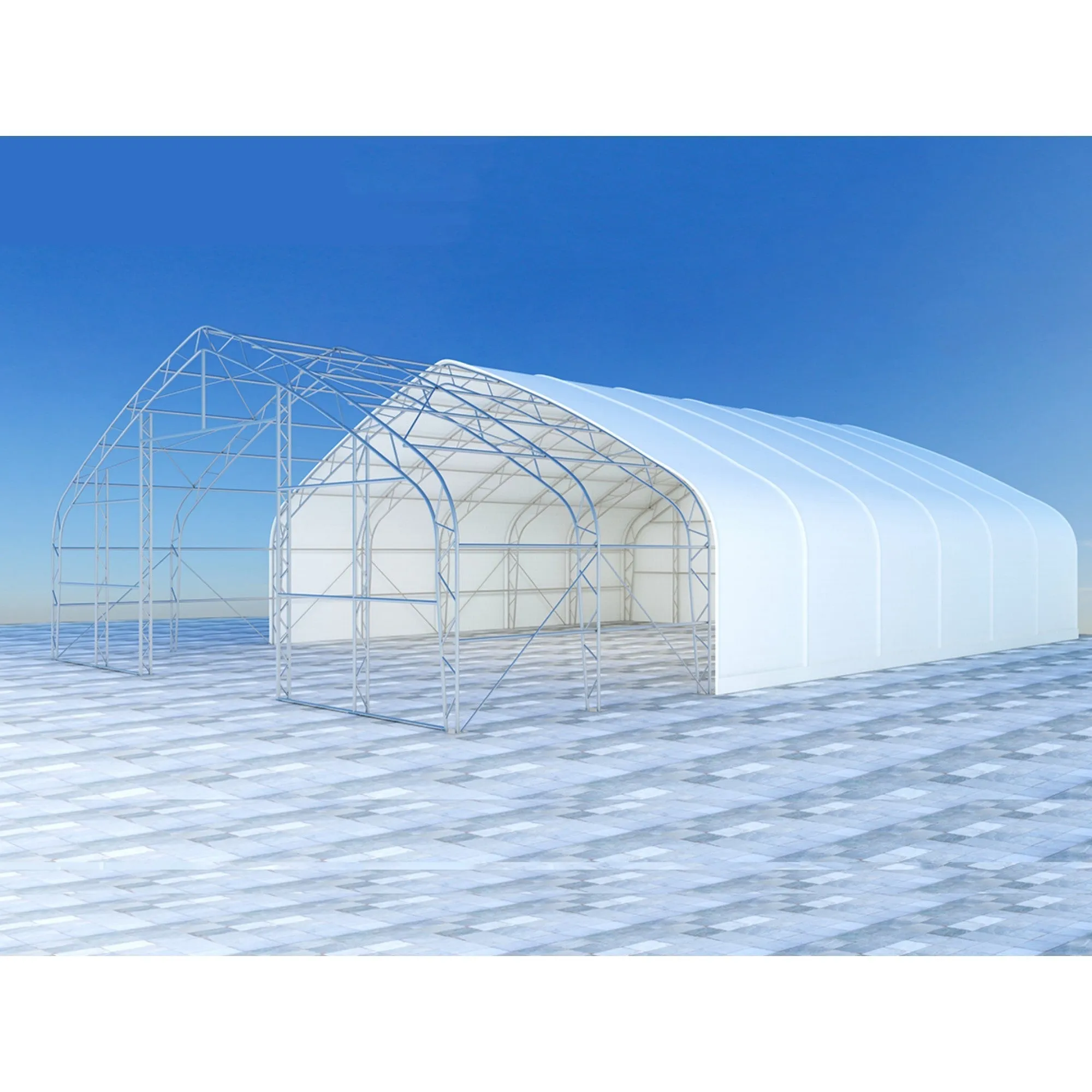

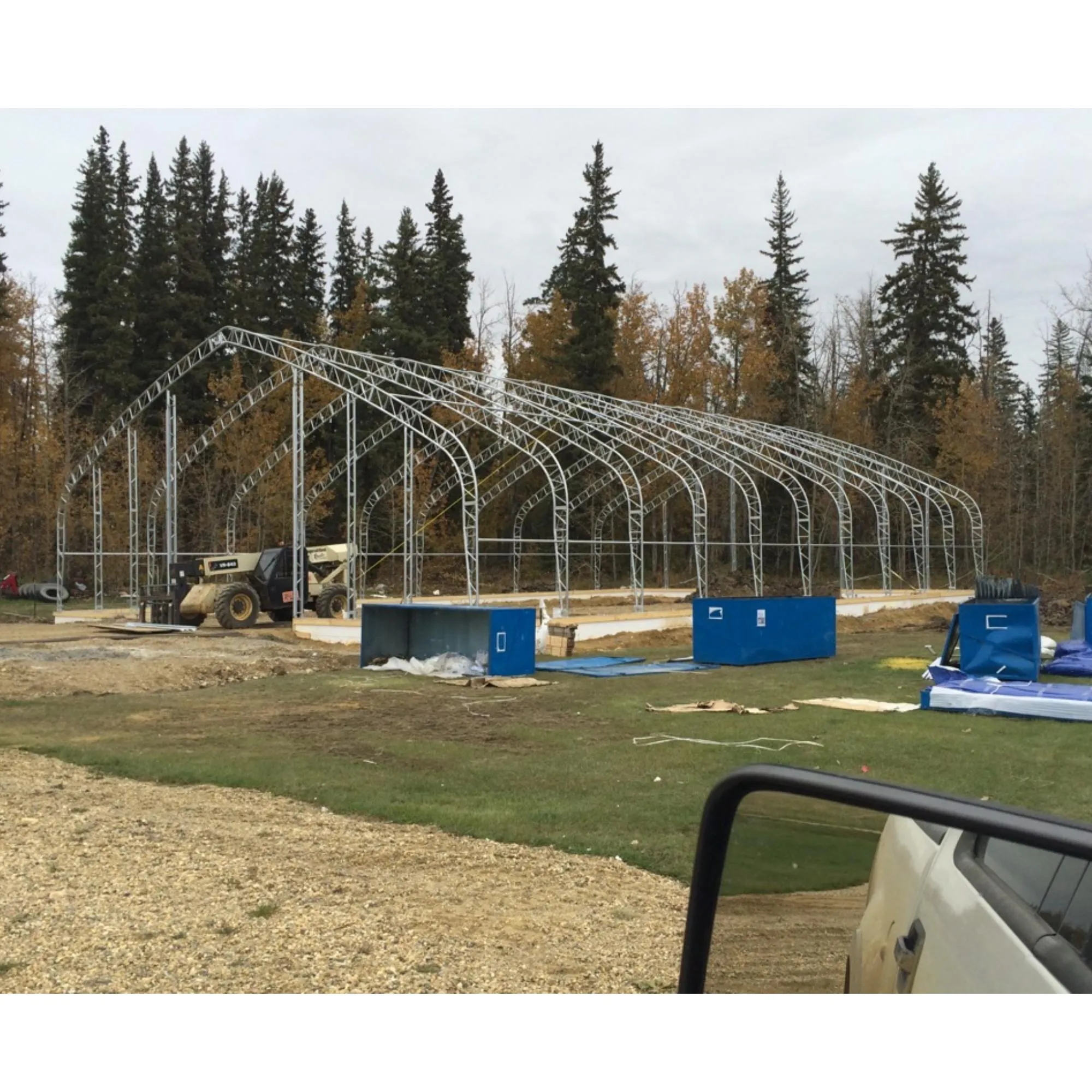

The galvanised steel structure is built to last, which is resistant to rusting and corrosion.
-
Weatherproof (snow, storm, wind, water), UV resistance, and fire retardant.
-

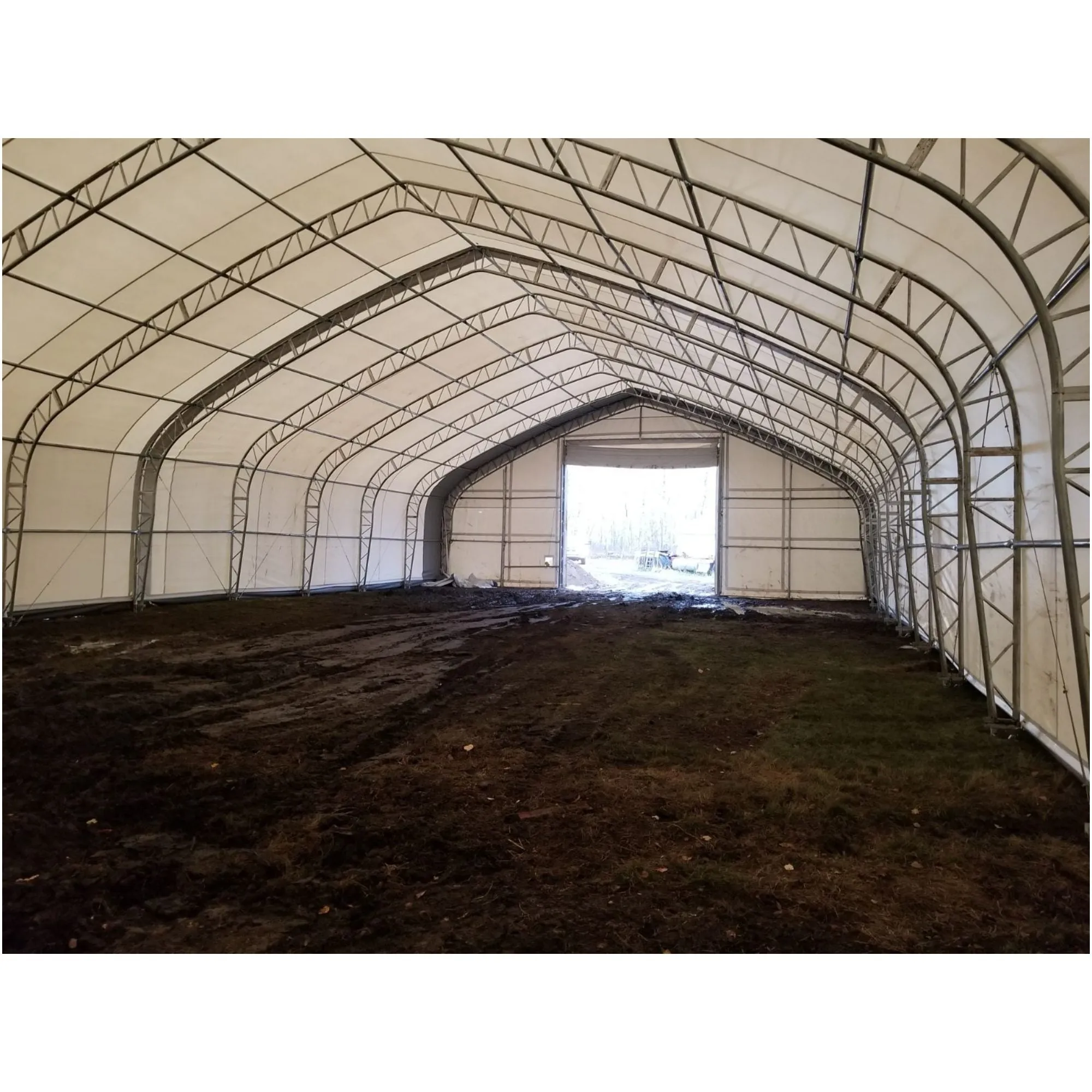

No need to use electricity during the day with the PVC cover providing enough natural light.
-
Easy entry and exit with double doors, which are placed at both ends.
Package Size
-
LxWxH (inch): box A: 138x44x44; box B: 138x44x52 Box C: 138x44x52 BoxD:138x44x52
-
Weight (lb): 11640
-
A forklift or equivalent is required for unloading

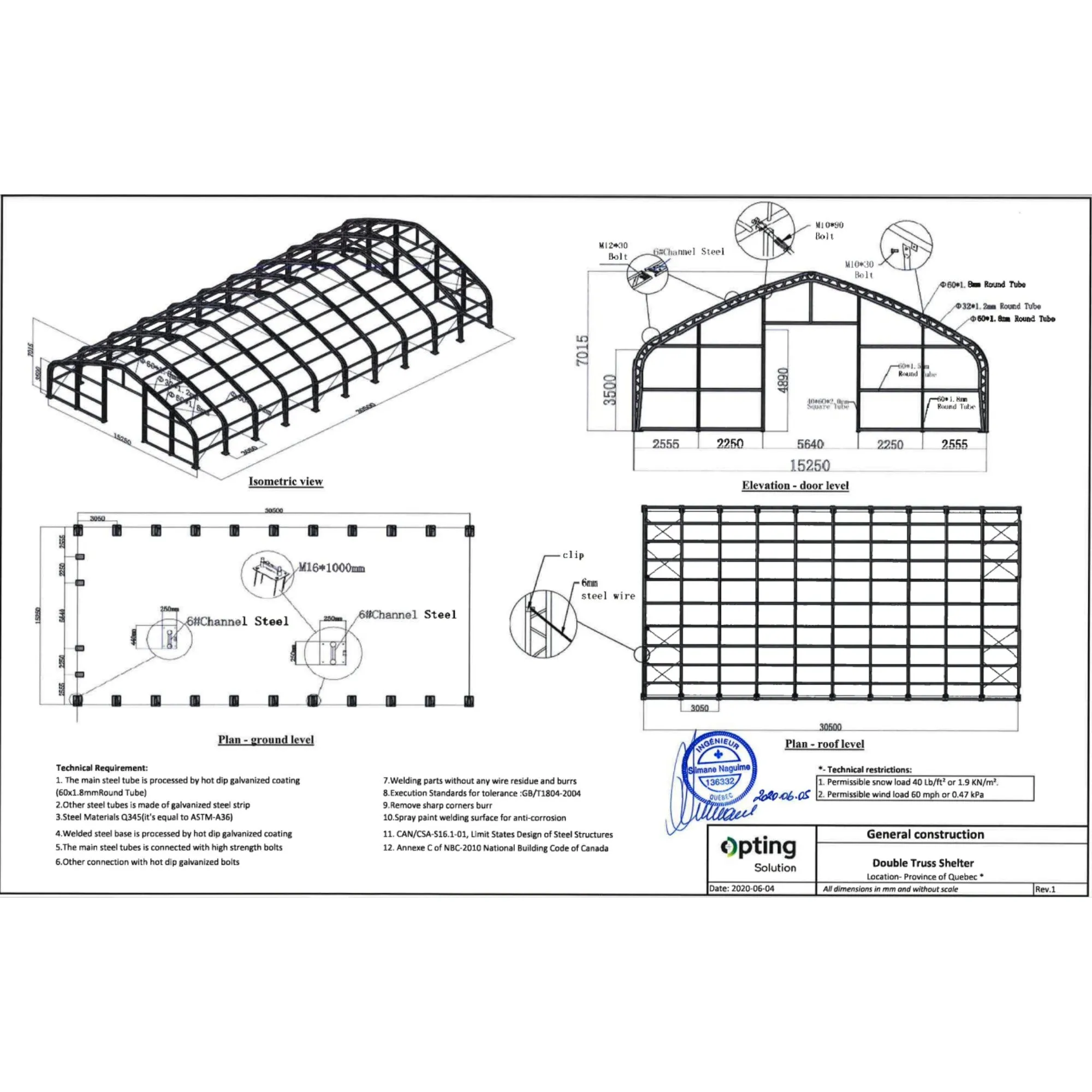

Specifications
| Type | Peak |
|---|---|

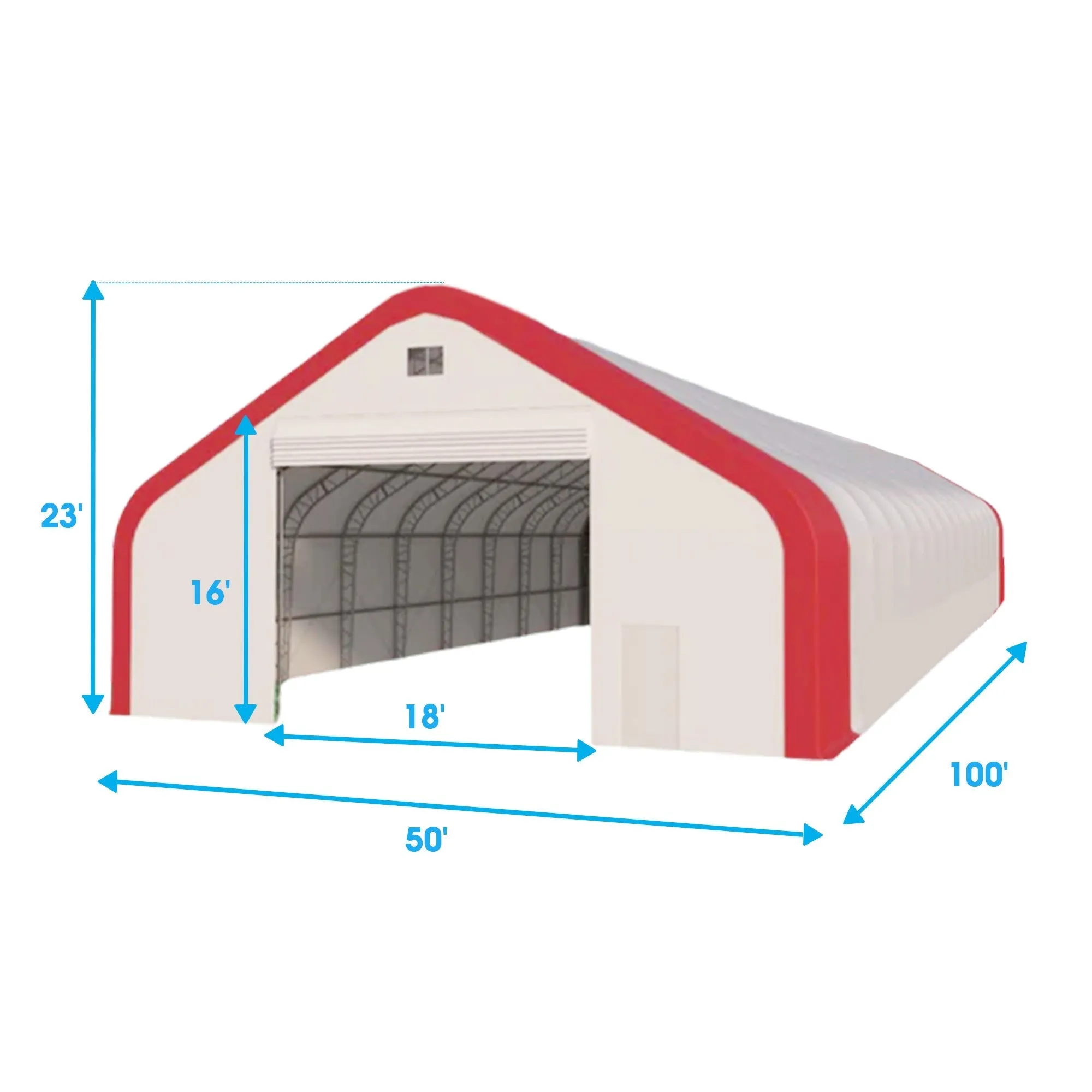

| Overall Dimensions (WxLxH) | 50’x100’x23’ |
| Door size (WxH) (Front & Rear) | 18ft x16ft |
| Weight | |
| Color | White with Green Edge |

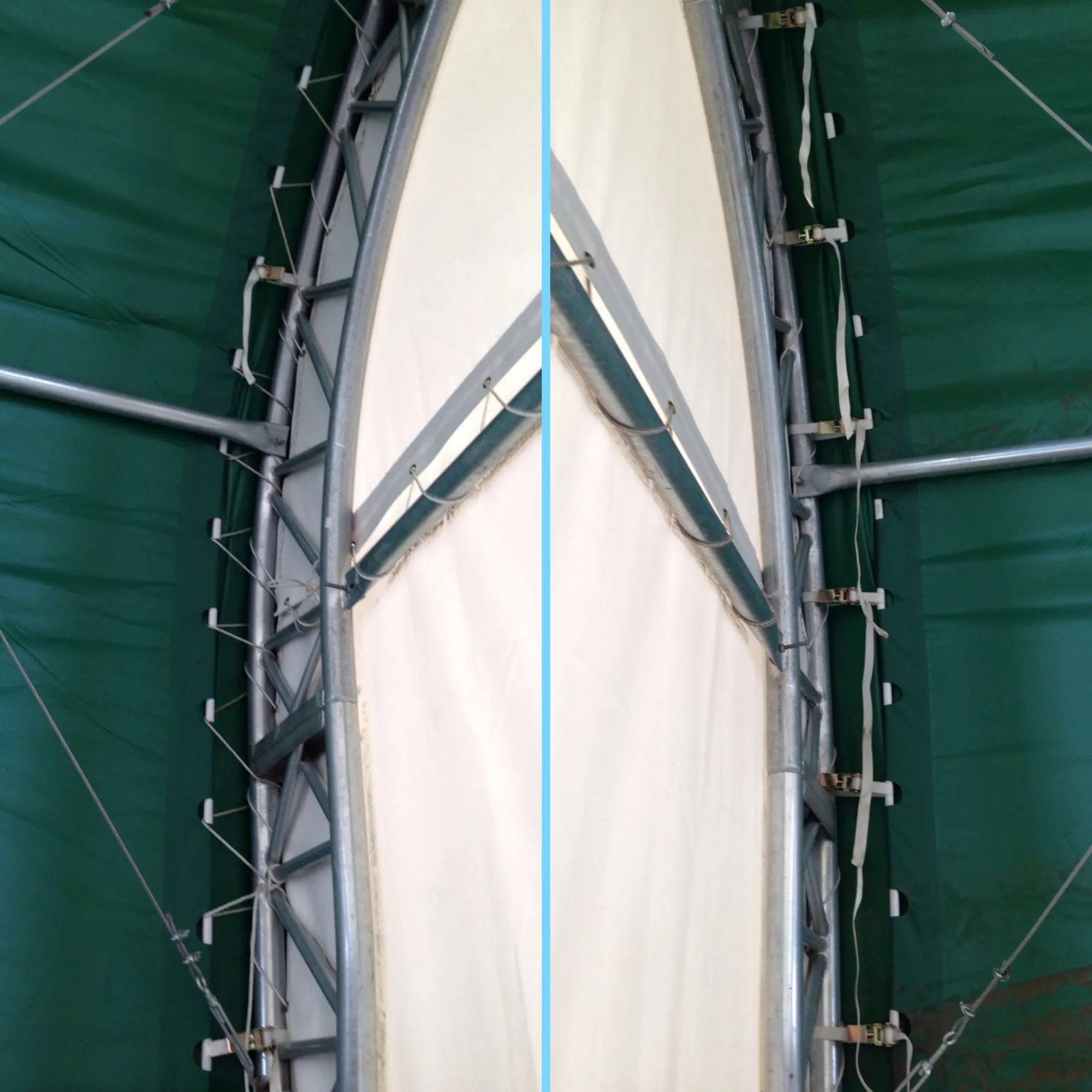

| Main steel Tube (arch) | OD 60mm, ID 56.4mm, thickness 1.8mm |
| Flat steel Tube (purlin) | OD 60mm, ID 57 mm, thickness 1.5mm |
| Side Wall Height | 3.5 meter |
| Winch door size | 5.49mx4.89m |

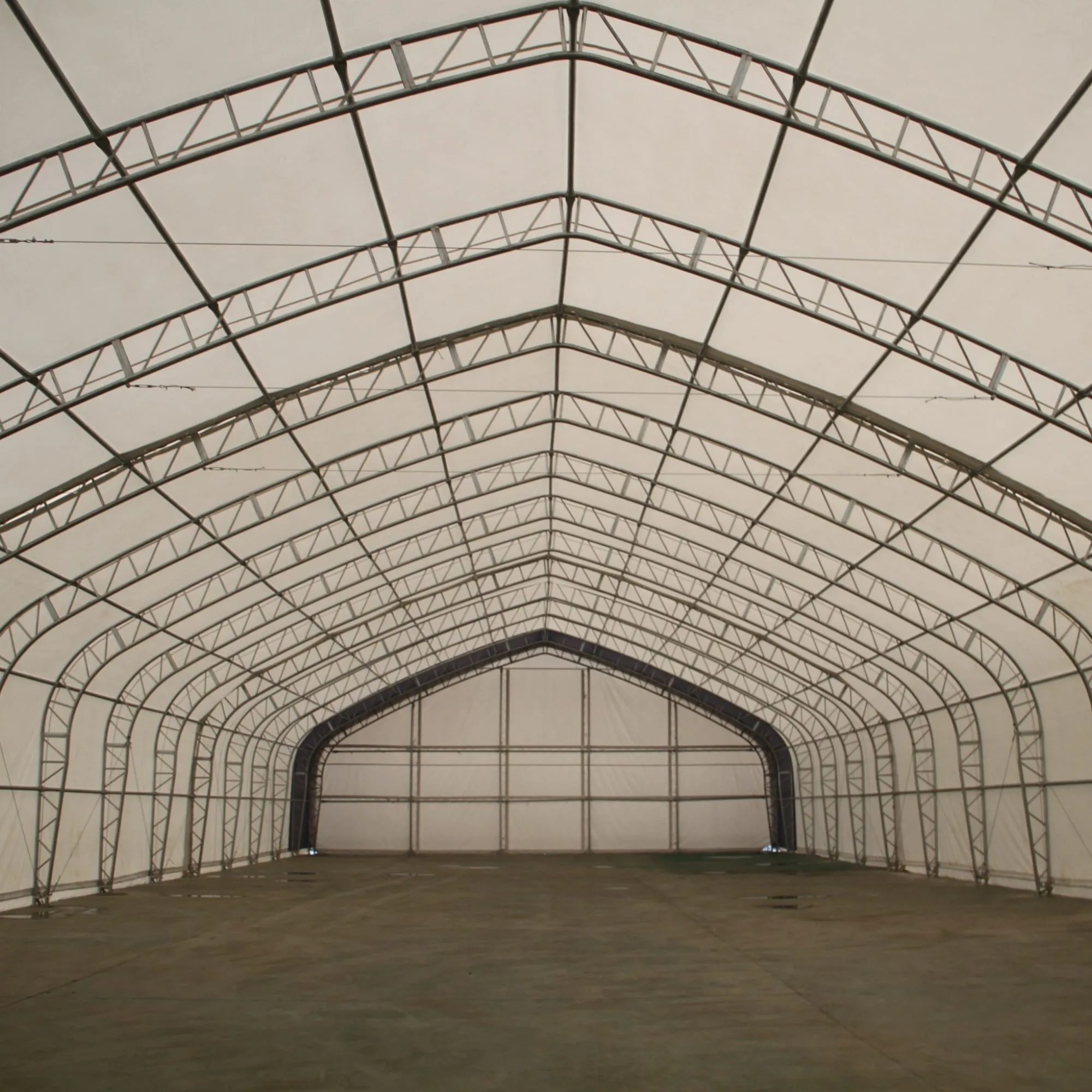

| Number of Arch | 11 |
| Arch Spacing | 3.05 meter |

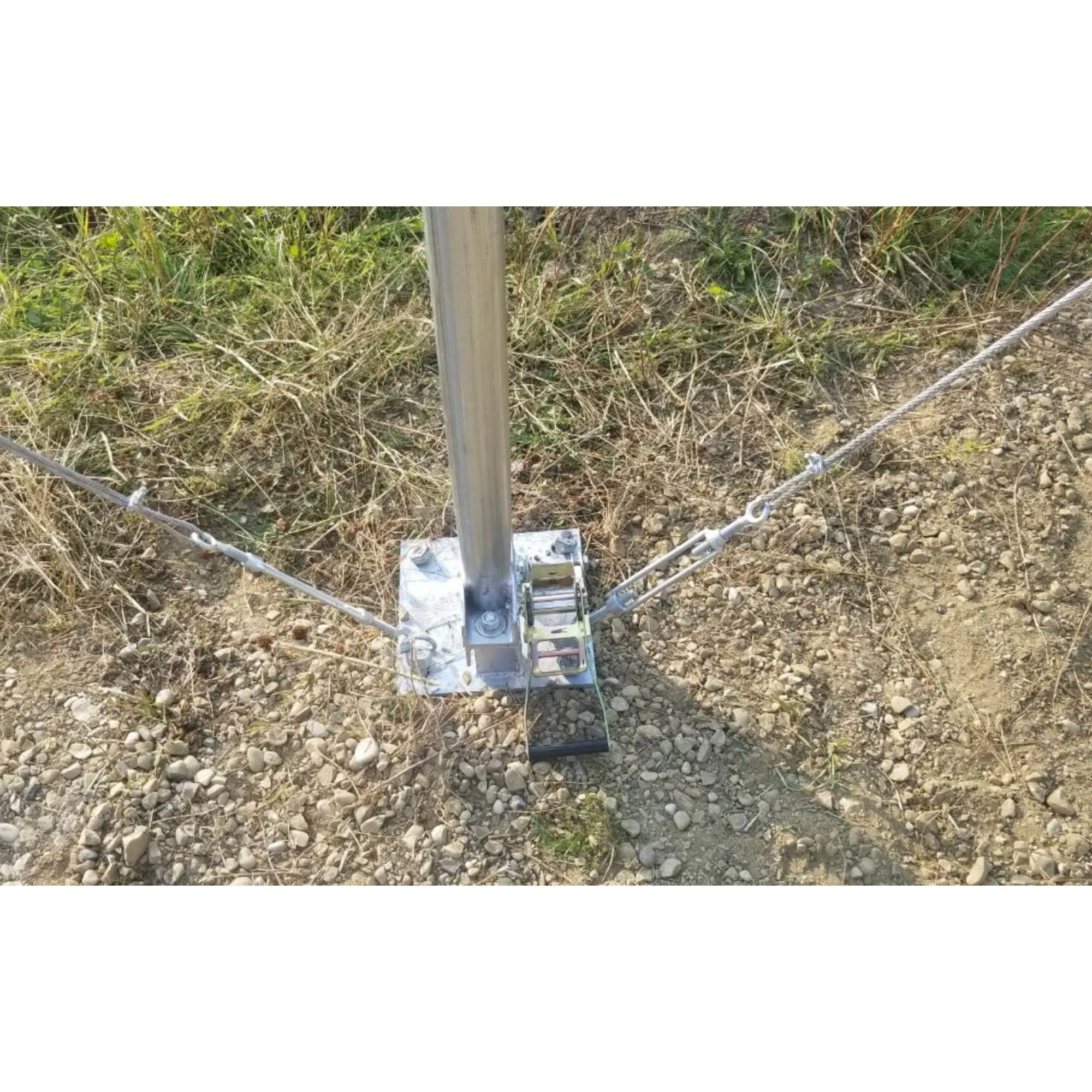

| Number of Anchor plates | 22 |
| Fabric | 610 (23oz) PVC |
| Snow Rating | Permissible snow load 40Lb/ft² or 1.9 KN/㎡ |
| Wind Load | Permissible wind load 60 mph or 0.47 kPa |
| Limited Warranty | 3 years |
| Average Lifespan | More than 10 years |
| Condition | New |
Product Manual
Delivery
Order shipment preparation takes 3 days. Once shipped orders usually take 2 weeks to be delivered. These are estimations; delivery can be delayed for reasons beyond our control. You can always contact us to know the exact delivery time once you placed an order with us. Have a look at our
