Features

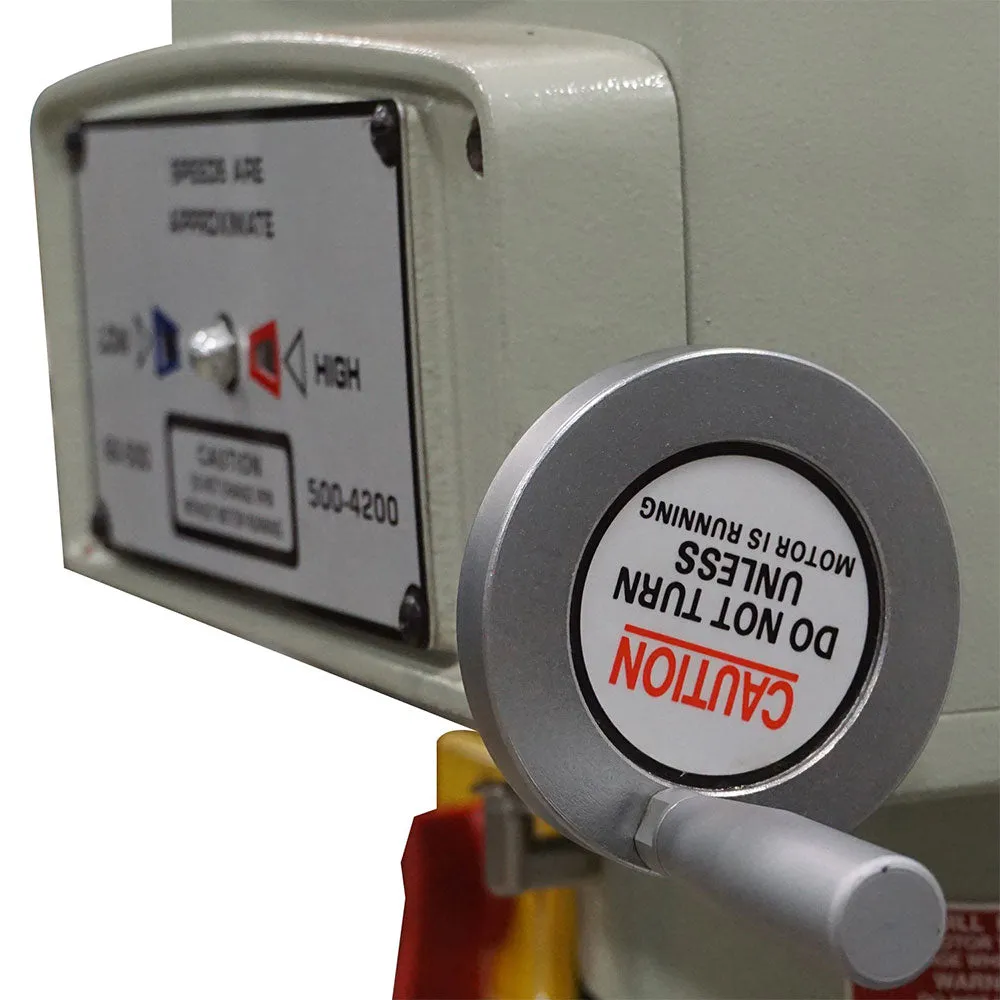

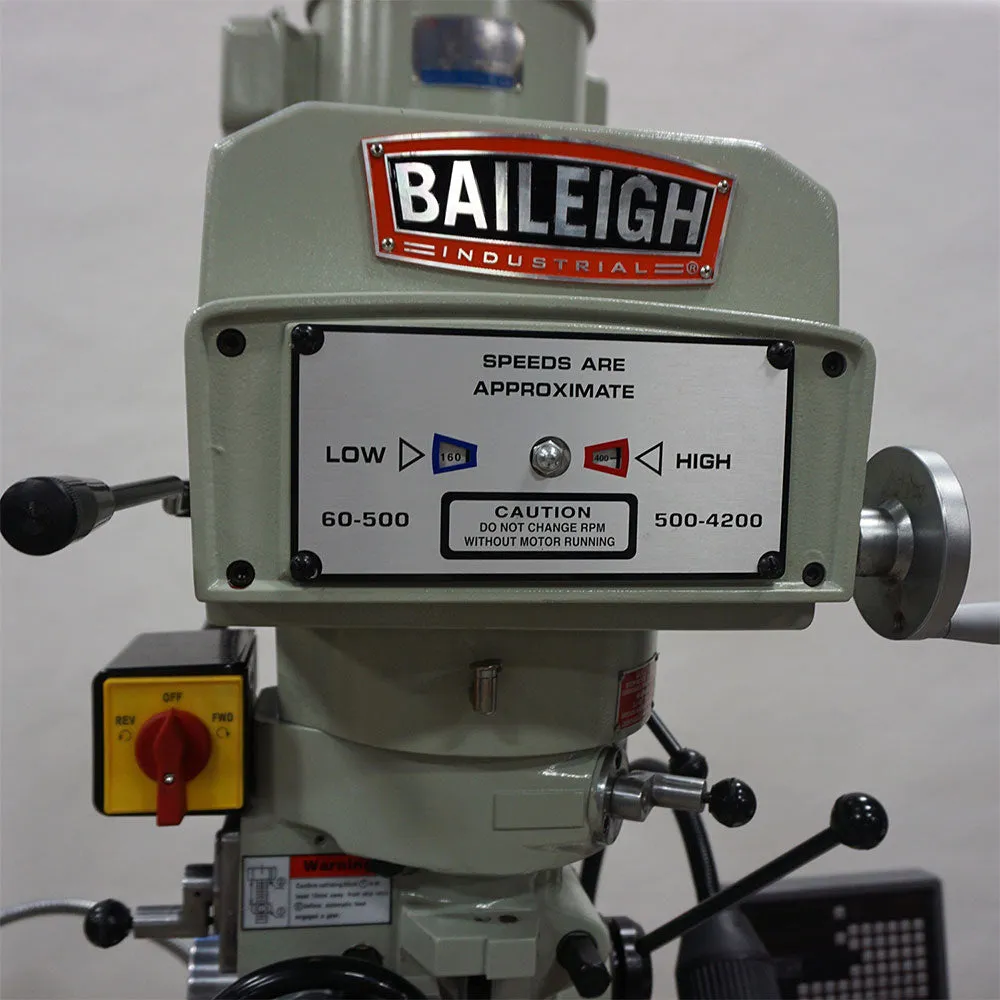

- Variable spindle speed by adjustable sheaves/pulleys - Control spindle RPM with the turn of a handle
- Infinitely adjustable variable speed from 60 to 4,200rpm – Allows tooling to run at its intended speed, resulted in longer tool life and better finishes
- R8 spindle and drawbar - Accepts the most common tooling
- Meehanite Casting – Rigid and dependable for decades of use
- Spindle brake – Easier tool changes and quick spindle stops
- 3 speed power quill feed w/ manual wheel – Perfect for boring and accurate, consistent work

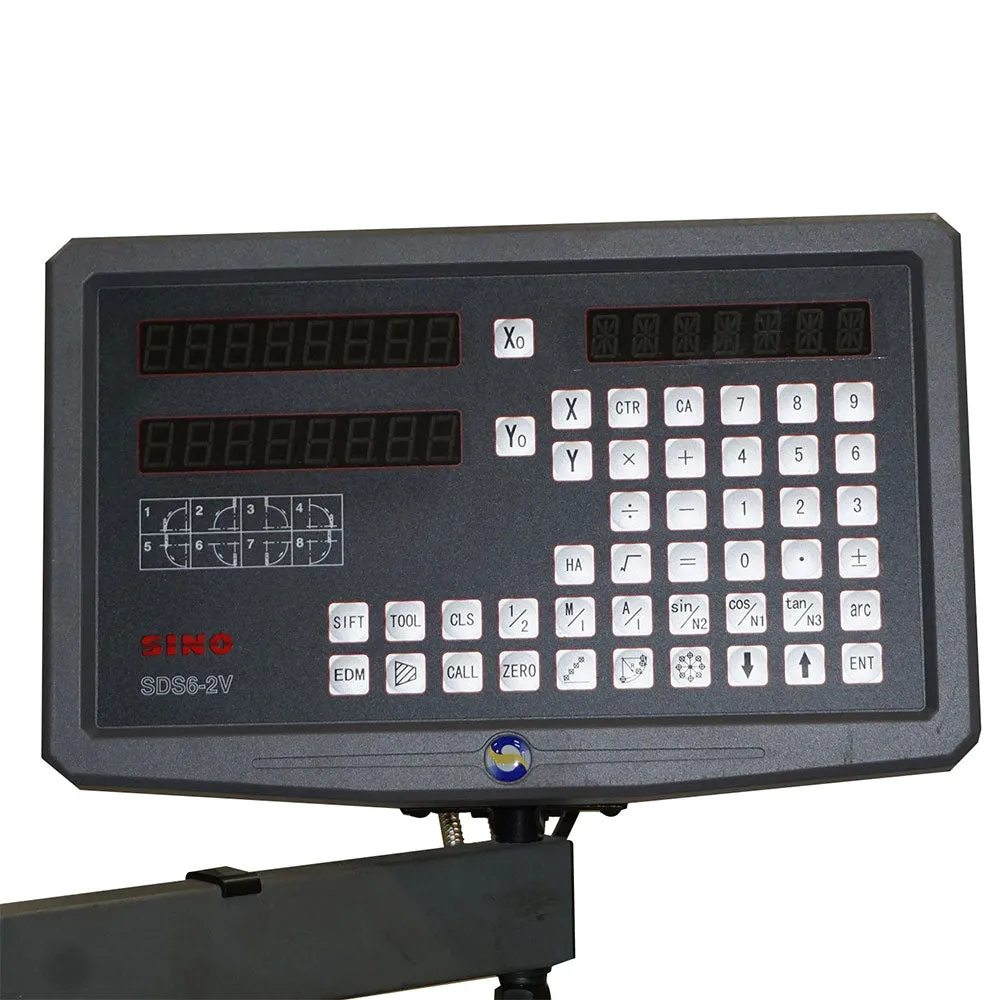

- DRO for X and Y axes

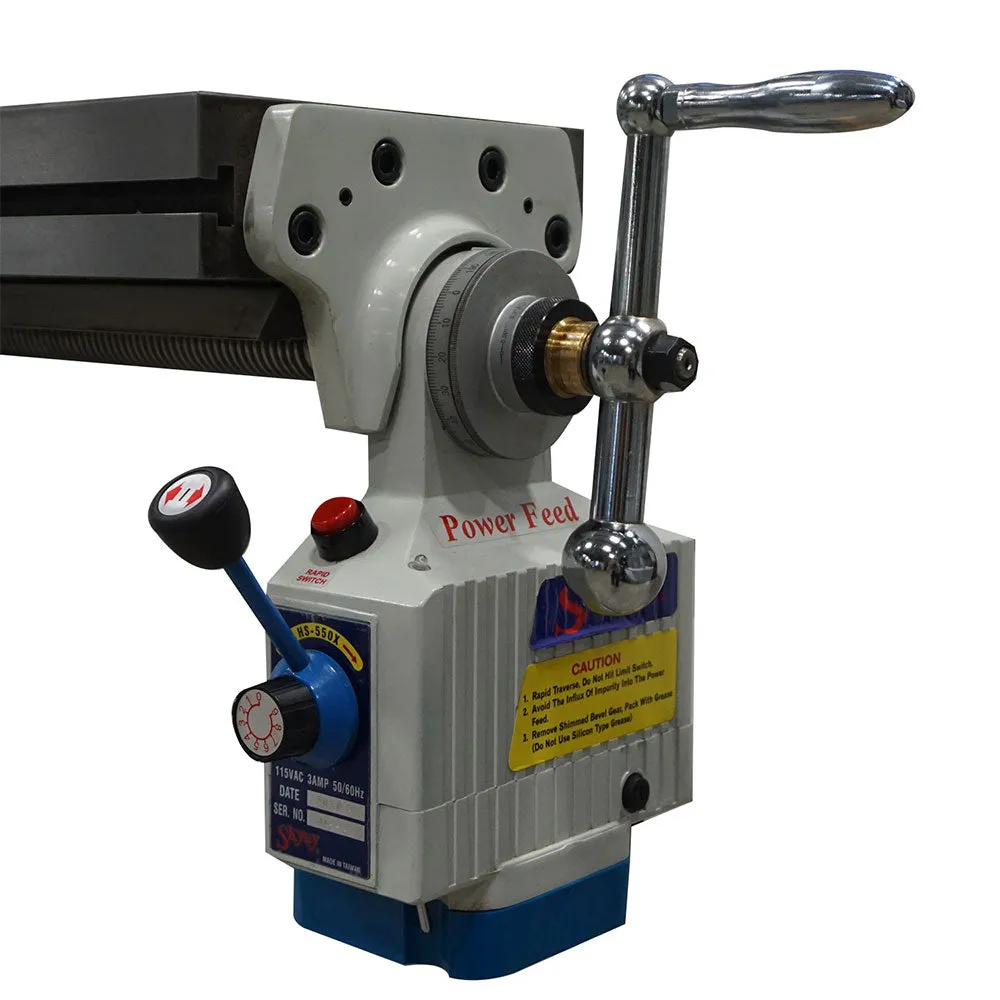

- Power feed X axis w/ rapid – Consistent travel speed without tiresome cranking
- Dovetail ways w/ adjustable gibs – Keep tolerances tight year after year
- Taiwan lead screws w/ backlash adjustable nuts – Remove backlash instead of compensating for it
- Way covers and wipers – Keep chips off ways and bed
- Integrated coolant system w/ splash guard – Large 6-gallon reservoir in the base houses the pump. Plumbed return line from the table eliminates overflow and messes

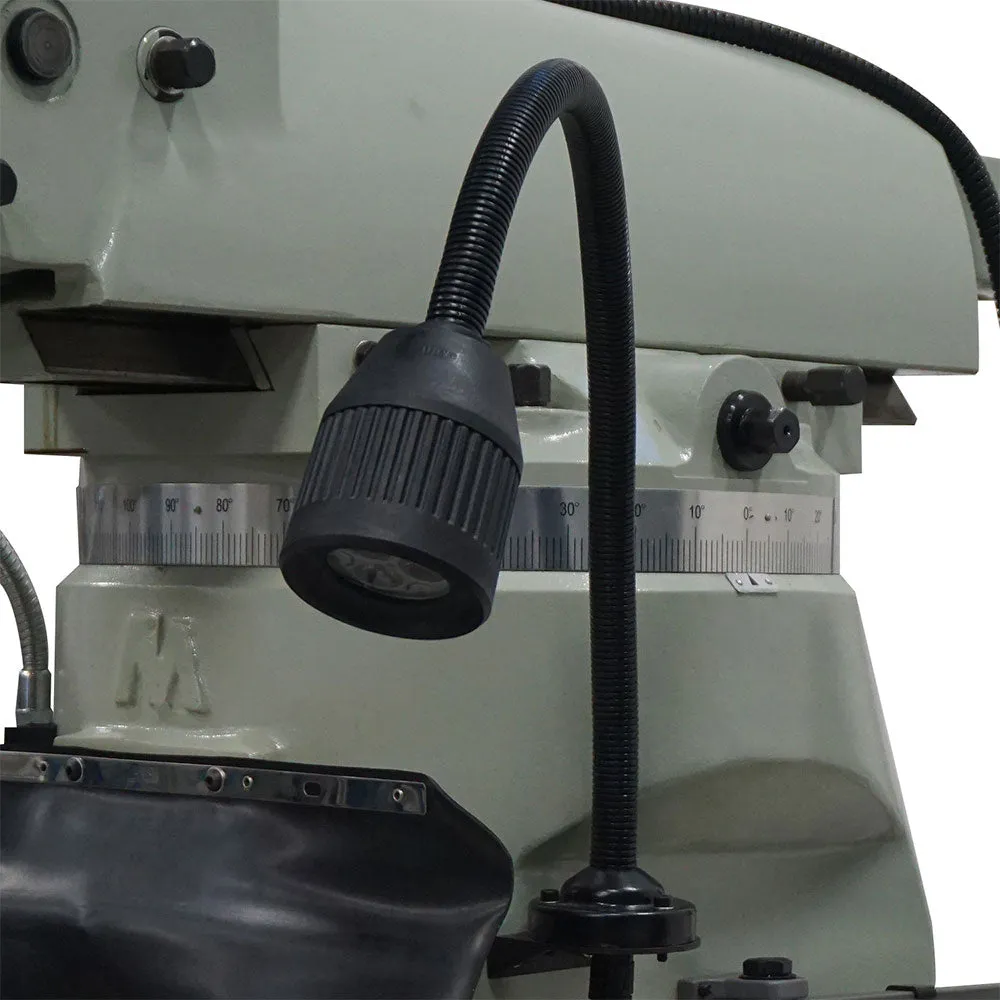

- LED work light

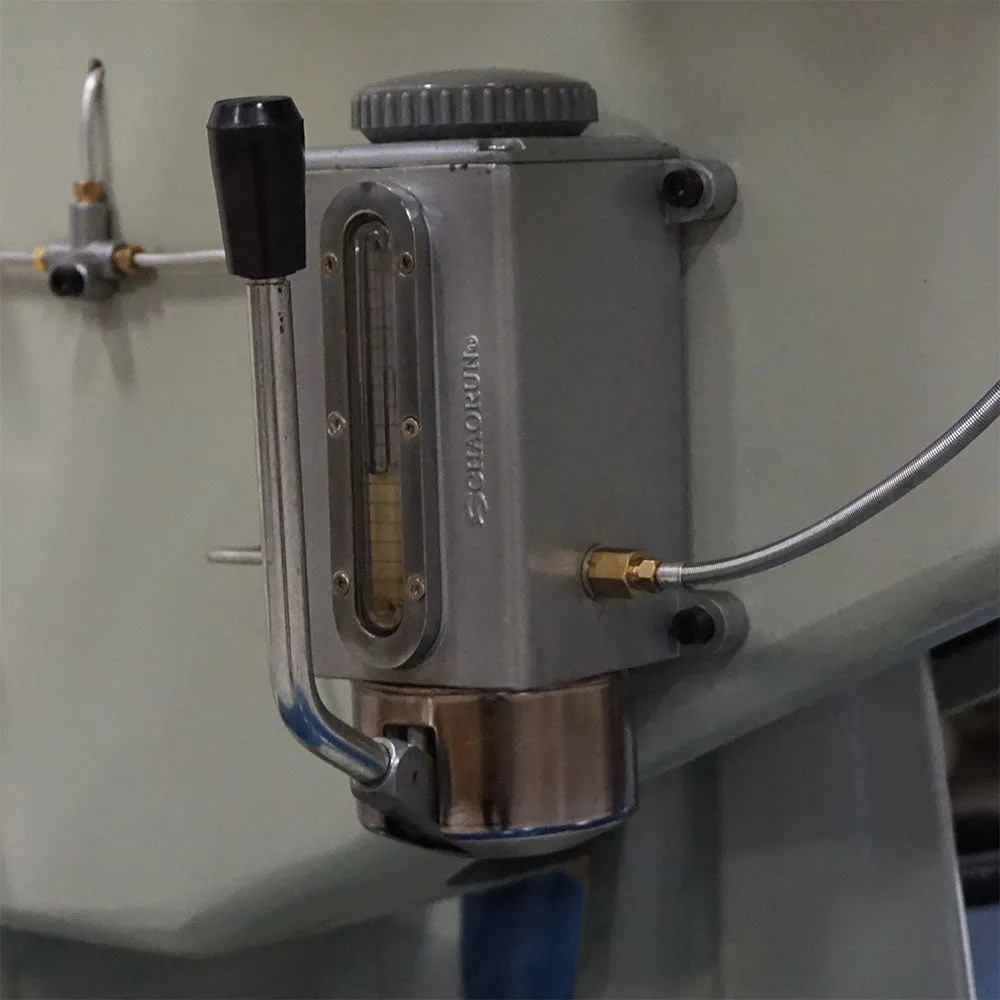

- One-shot lubricator – Keep up on lubrication maintenance by simply pulling a lever
What's in The Box

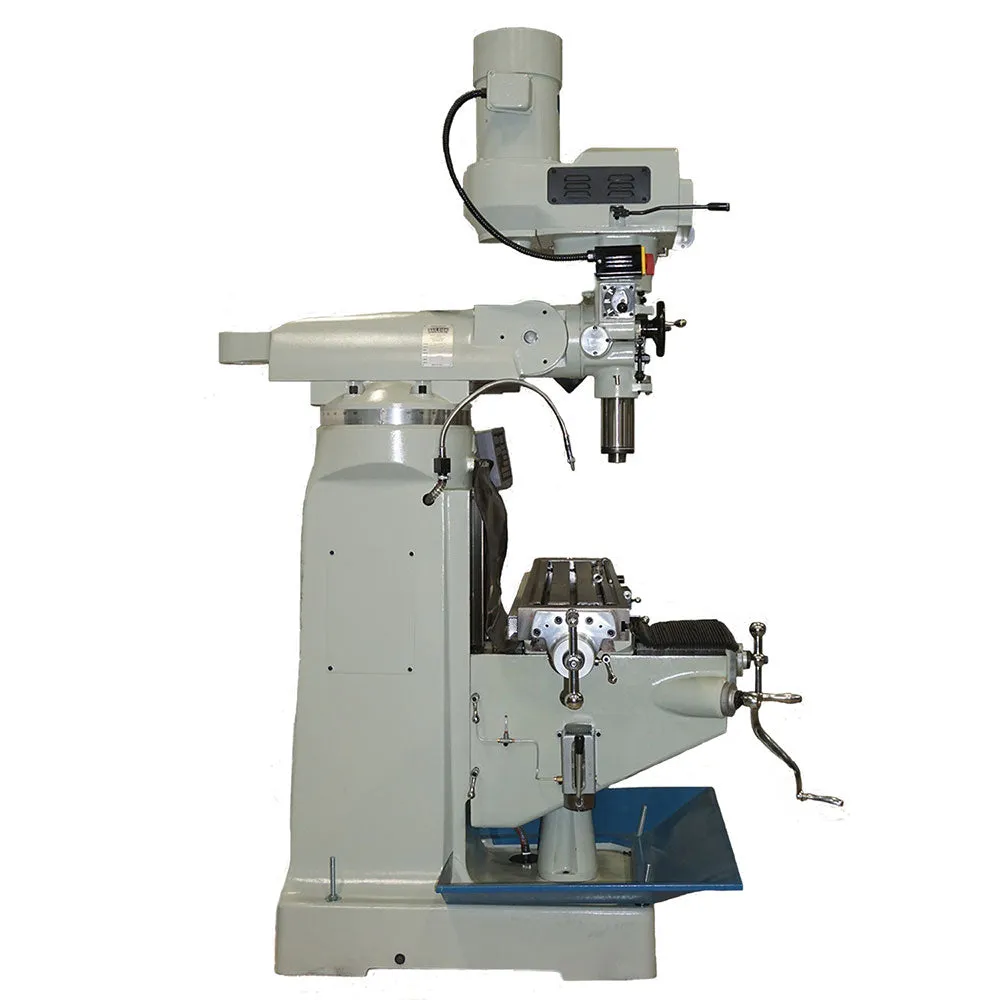

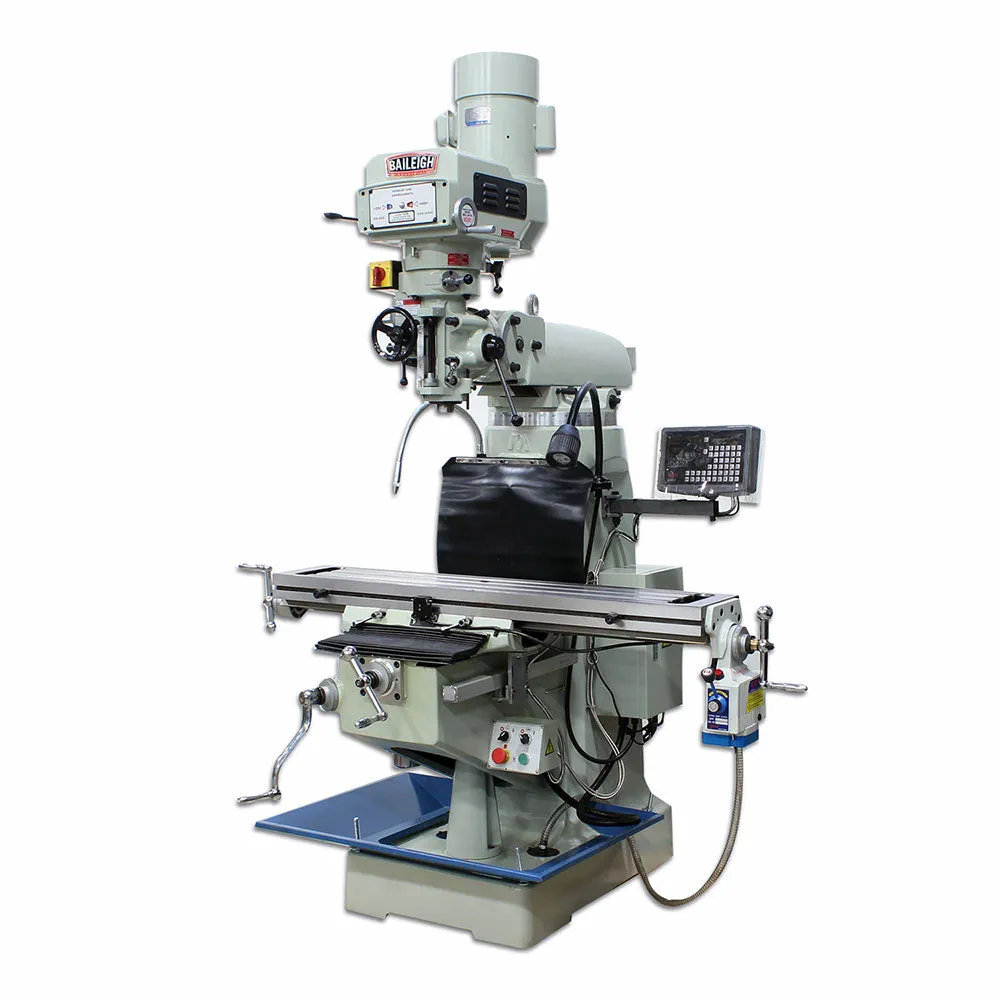

- VM-949E-VS - Vertical Mill
- Owner's Manual
Warranty
- 1 Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| SKU | VM-949E-VS |
| Power | 220V / 1-phase |
| Motor | 3 hp |
| Spindle Speeds | 60 - 4,200RPM Infinitely Variable |
| Distance from Spindle to Table | 18.5" |
| Spindle Travel | 4.9" |
| Spindle Speed Range | 60 to 4200 RPM |
| Spindle Feeds | .003" .0015" .008" |
| Power Feed | X axis |
| Table Size | 9" x 49" |

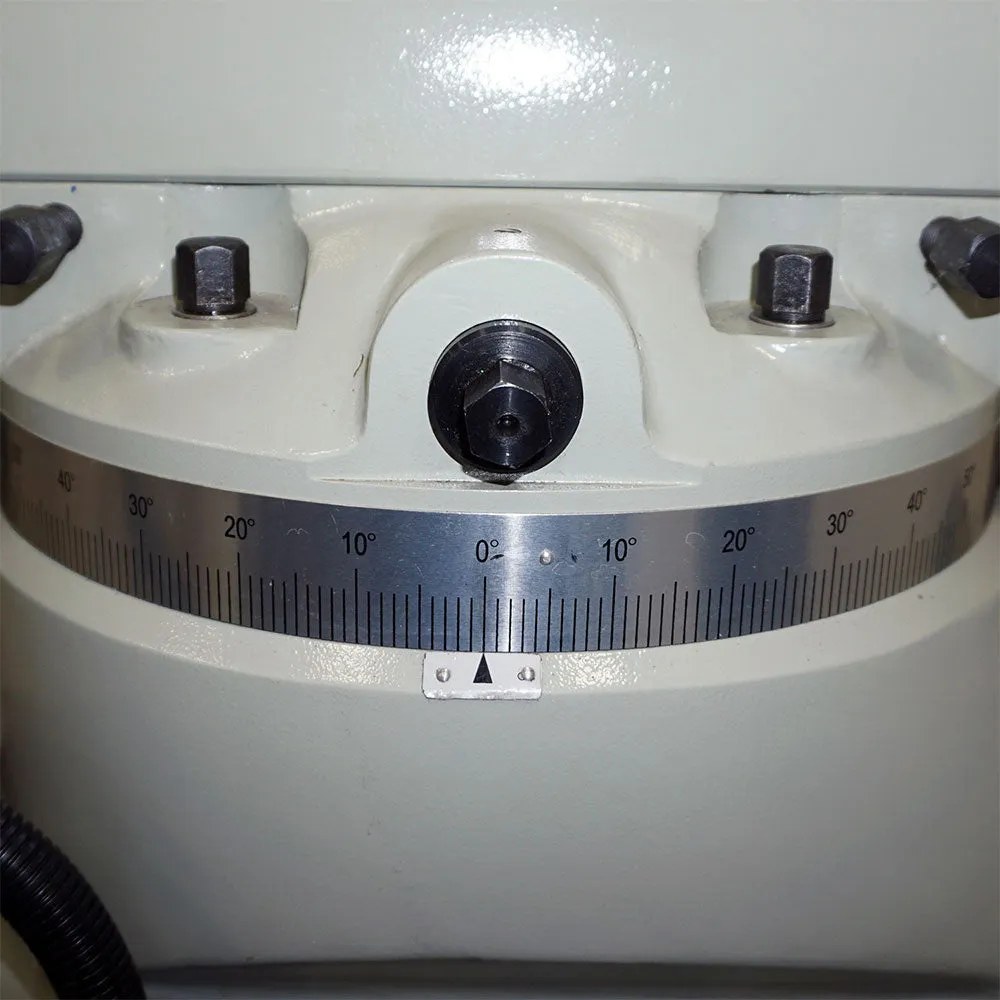

| Range of Movement | 90° Left and Right, 45° Front and Back |
| Spindle Diameter | 3.3" |
| Included Accesories | Included Accesories |
| X Axis Travel | 31-5/8"" |
| Y Axis Travel | 11-a3/16" |
| Z Axis Travel | 13-3/4" |
| Spindle Taper | R8 |
| T Slots | .625" |
| Drill Capacity | 2" |
| Dimensions (Inches) | 72 x 72 x 72 |
| Weight | 1980 lbs |
