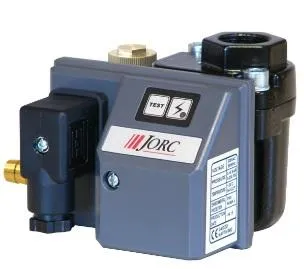

3402 JORC CAPTIVE-MD ZERO LOSS CONDENSATE WATER DRAIN
The KAPTIV-MD is a zero air-loss drain designed for smaller compressed air applications.
The KAPTIV-MD incorporates the reliable JORC direct acting valve assembly with FPM seals, offering a pressure range of 0 to 16 bar (up to 230 PSI).
The solid and robust aluminium housing design has also been incorporated in to this model, following suite with the larger KAPTIV models.
With an inlet connection height of only 74mm this is an incredibly compact solution with unrivaled installation versatility and reliability.
The weight of the KAPTIV-MD is only 0.5kg!
The maximum compressor capacity of this drain is 10 m3/min (350 CFM) and typical draining applications include fridge dryers and filters - mainly due to its incredible compact size.
SPECIFICATIONS
| MAX. COMPRESSOR CAPACITY | 10 m³/min. |
| MAX. DRAINAGE CAPACITY | 45 liters condensate per hour at 16 bar |
| PRESSURE RANGE | 0 - 16 bar |
| VALVE TYPE | 2/2 way, direct acting |
| VALVE ORIFICE | 2 mm |
| VALVE SEALS | FPM |
| INLET CONNECTION | 1/2″ (BSP or NPT) |
| INLET HEIGHT | 7.4 cm |
| OUTLET CONNECTION | 1/4″ BSP |
| MEDIUM TEMPERATURE | 1 - 50 °C |
| AMBIENT TEMPERATURE | 1 - 50 °C |
| SUPPLY VOLTAGE OPTIONS | 230VAC / 115VAC / 24VAC / 24VDC |
| POWER CONNECTOR | DIN 43650-B |
| SERVICEABLE VALVE | Yes |
| TEST FEATURE | Yes |
| ENVIRONMENTAL PROTECTION | IP65 (NEMA4) |
| INTEGRATED MESH STRAINER | Yes |
| HOUSING MATERIAL | Corrosion resistant aluminium, EP coating |
